| Brand | GE |
| Model # | GE50T08BAM |
| Width | 22 in. |
| Height | 63.75 in. |
| Depth | 22 in. |
$649.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders

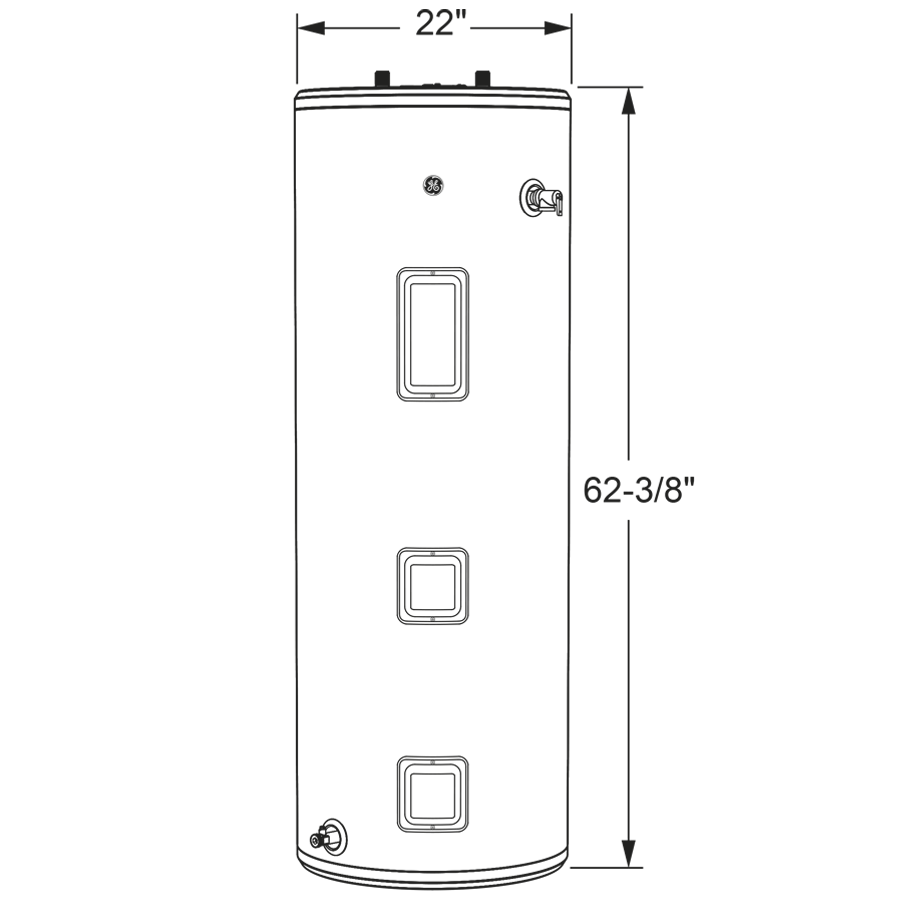

Dimensions
Overall Width22 in
Overall Height63.75 in
Product Height (to Top Of Unit)62.25 in
Overall Depth22 in
Net Weight142 lb
Product Height (to Top Of Water Inlet/outlet Connections)63.75 in
Product Diameter22 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Width22 in.
Height63.75 in.
Length22 in.
Weight142 lbs.
Features
Control TypeThermostat
Temp & Pressure Relief ValveYes
Height DescriptionTall

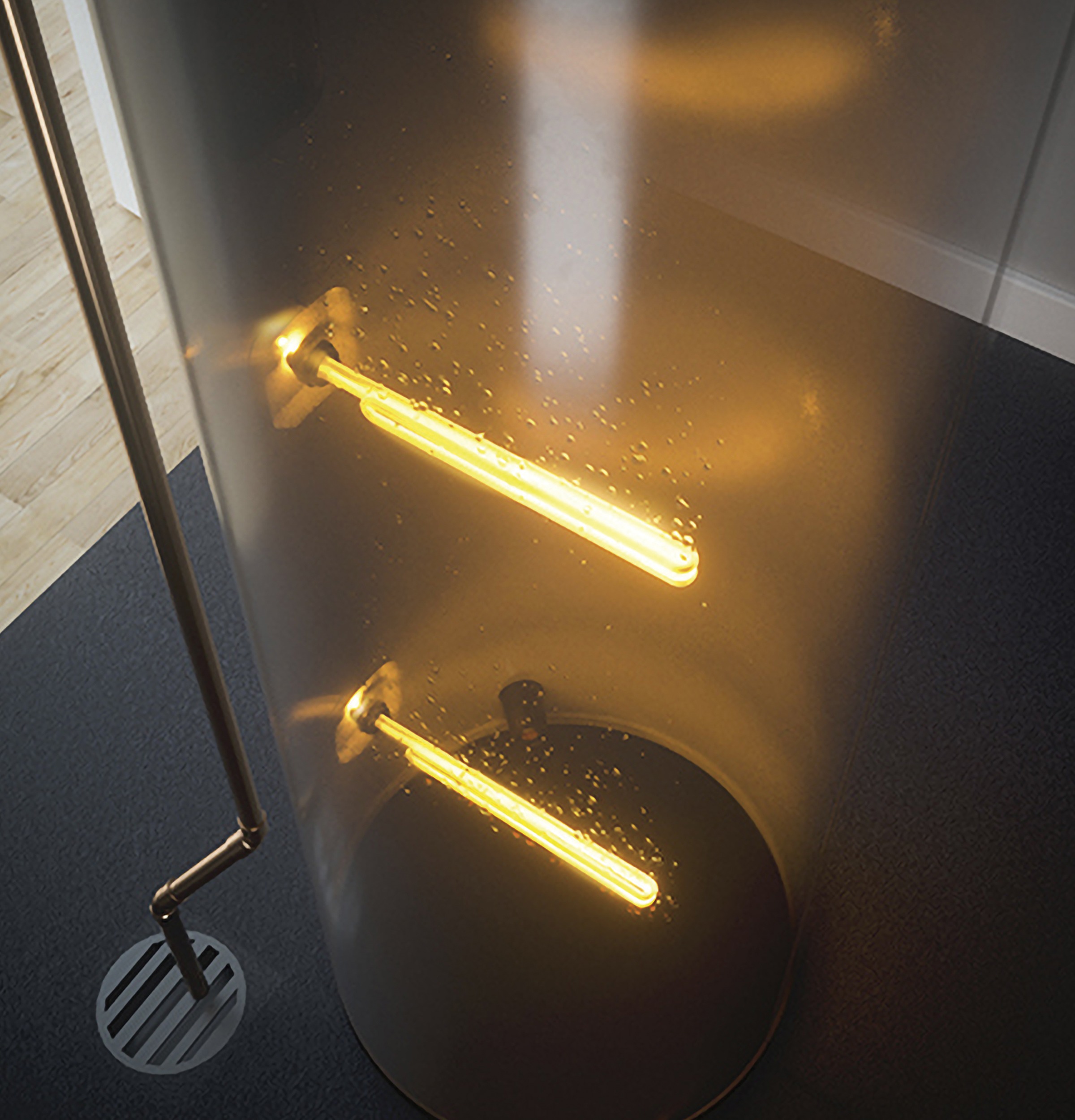

Heating ElementCopper
Fuel TypeElectric
ConfigurationTall
Installation LocationIndoor
Operating ModesStandard Electric
Rated Storage Capacity50

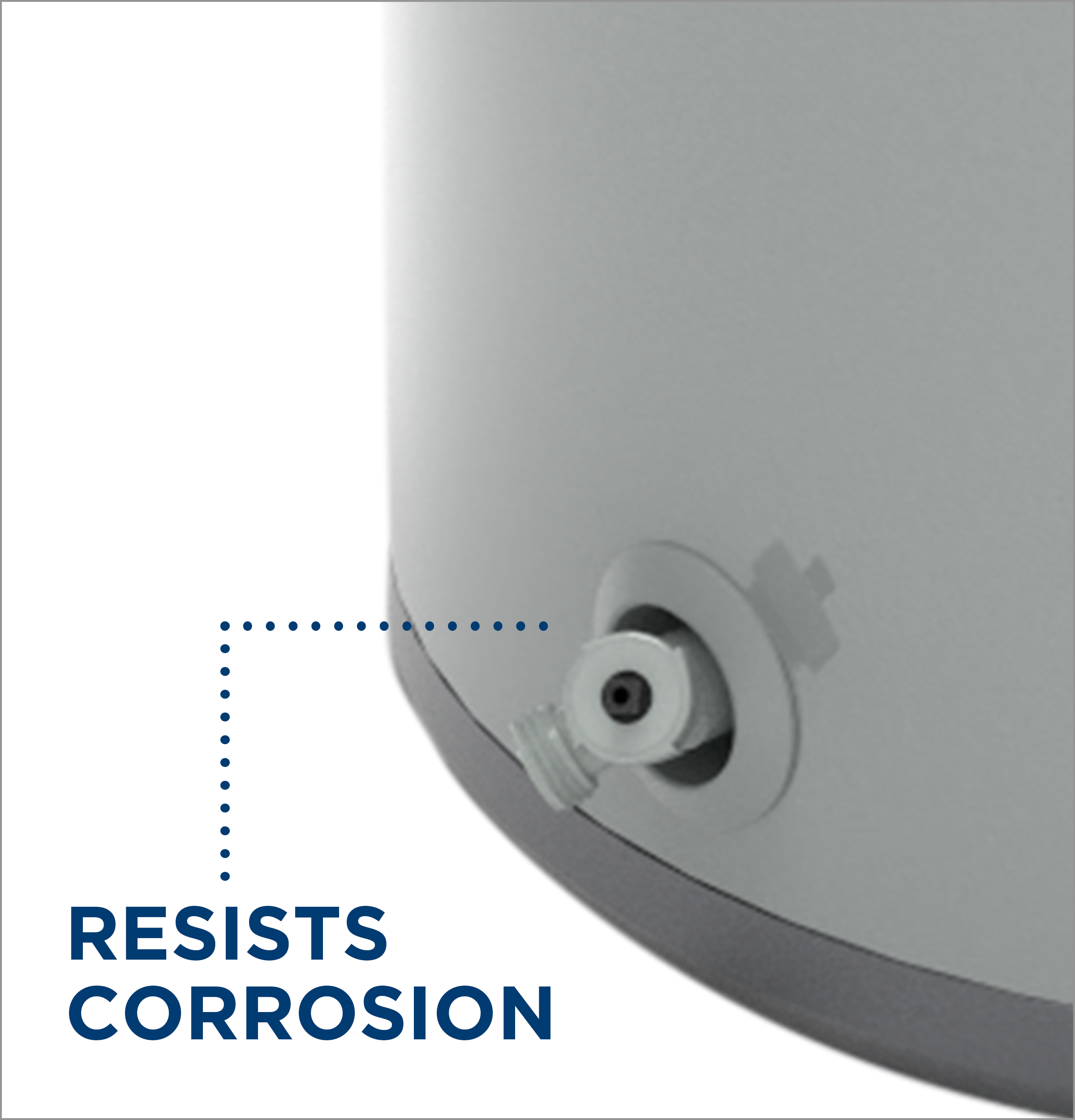

Drain Valve TypePlastic
Mobile Home CompatibleNo
Gph Recovery @ 90 Degrees F25.1
Temperature Setting Factory Default120° F
Product TypeElectric Thermostat
Family Size3-5 People

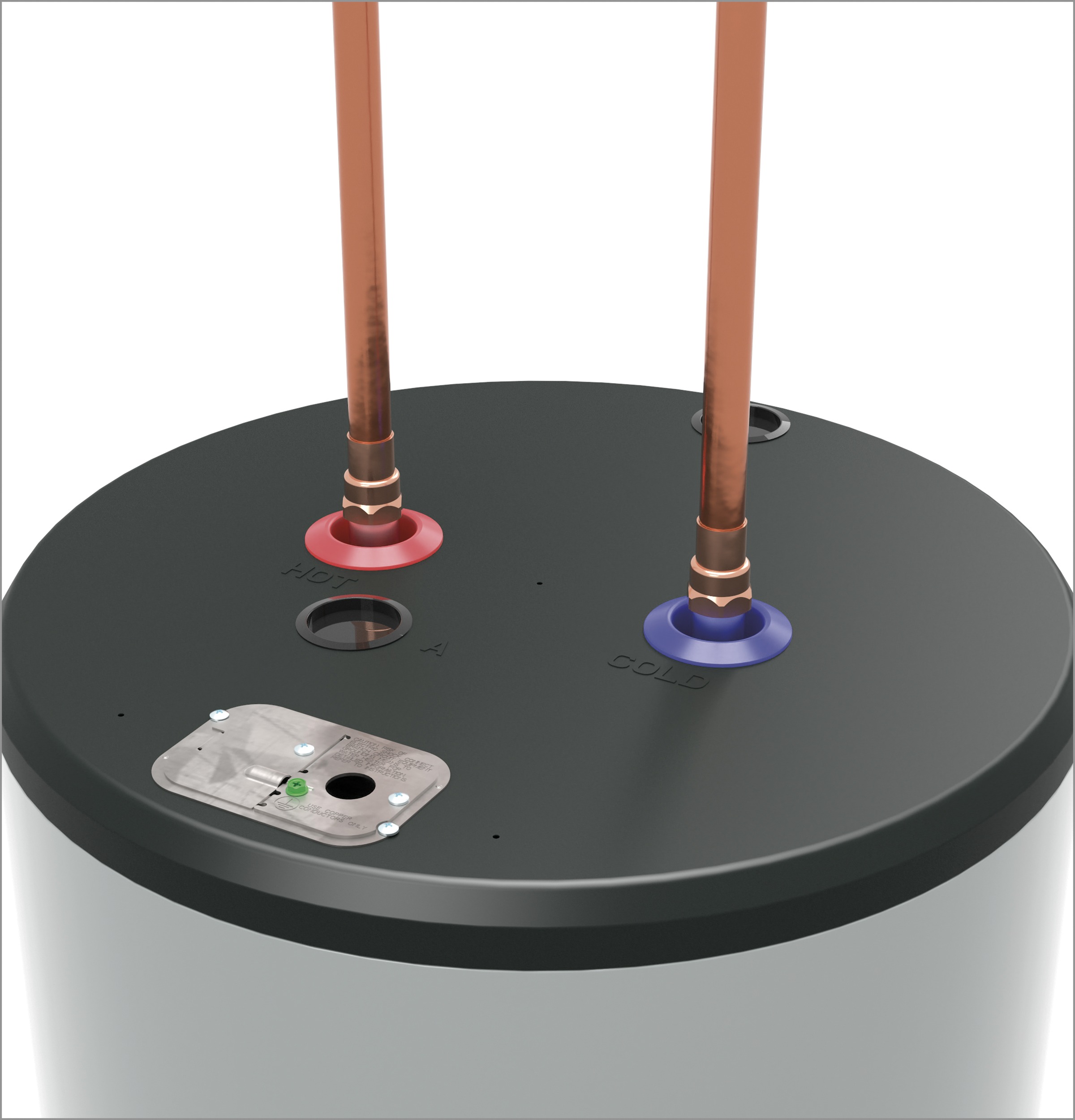

Water Connection LocationTop
Foam InsulationYes
Point Of UseNo

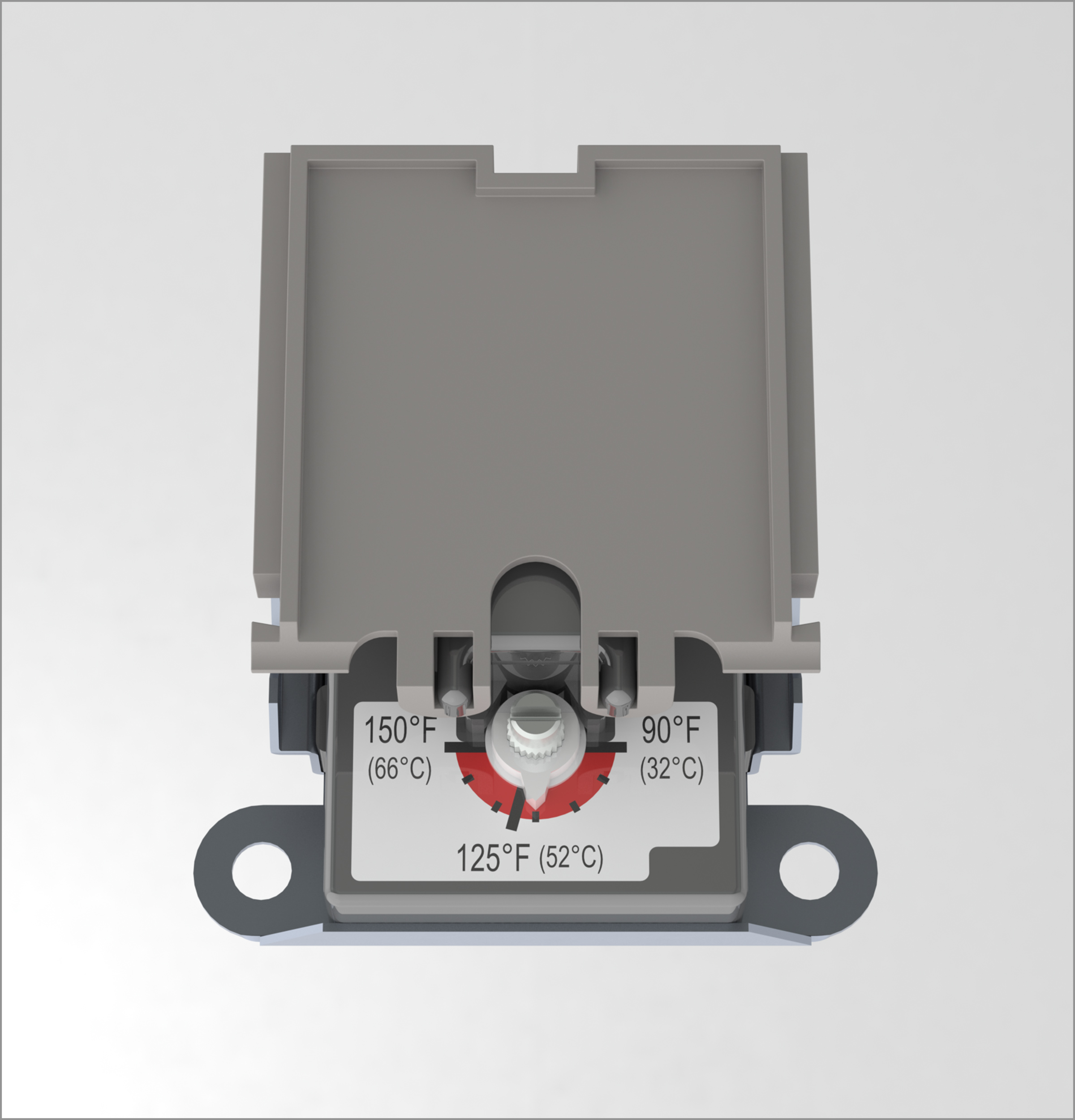

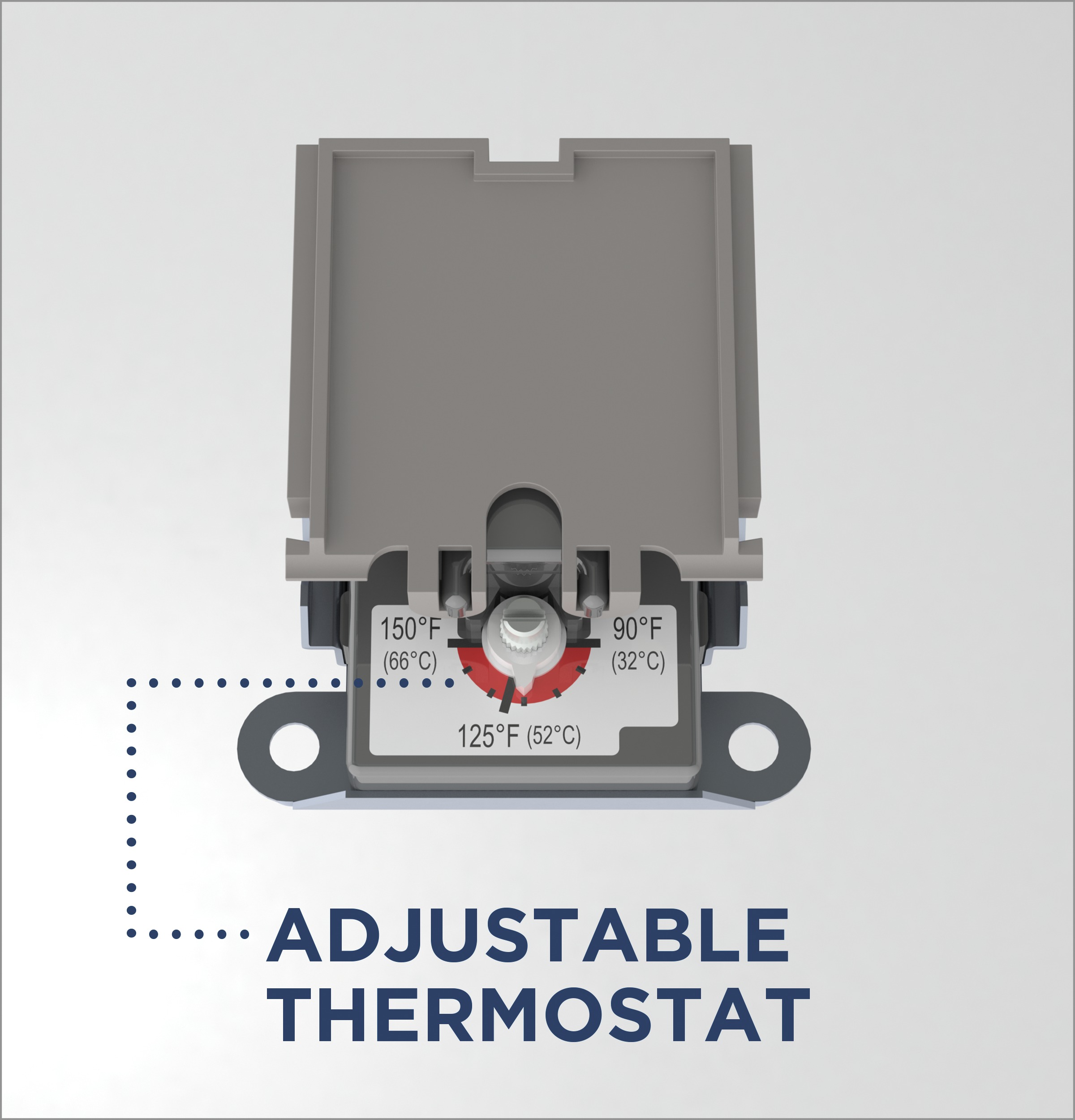

Temperature Setting90-150° F Range
Insulation Thickness2.75 in
Power & Ratings
Integrated Energy Factor0.93
Heating - Electric - Heater Watts5500/5500
Electrical ConnectionDirect-Wire
Operating Water Pressure20-125 PSI
Volts/hertz240V; 60Hz
First Hour Rate (fhr)76 Gallons
Voltage (max)240 V
Electrical Circuit Required208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kwh/year)5334
Warranty
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 8-year tank and parts
Labor WarrantyLimited 1-year entire appliance
Capacity
Unit Capacity50 Gallons
Appearance
Color AppearanceGray
