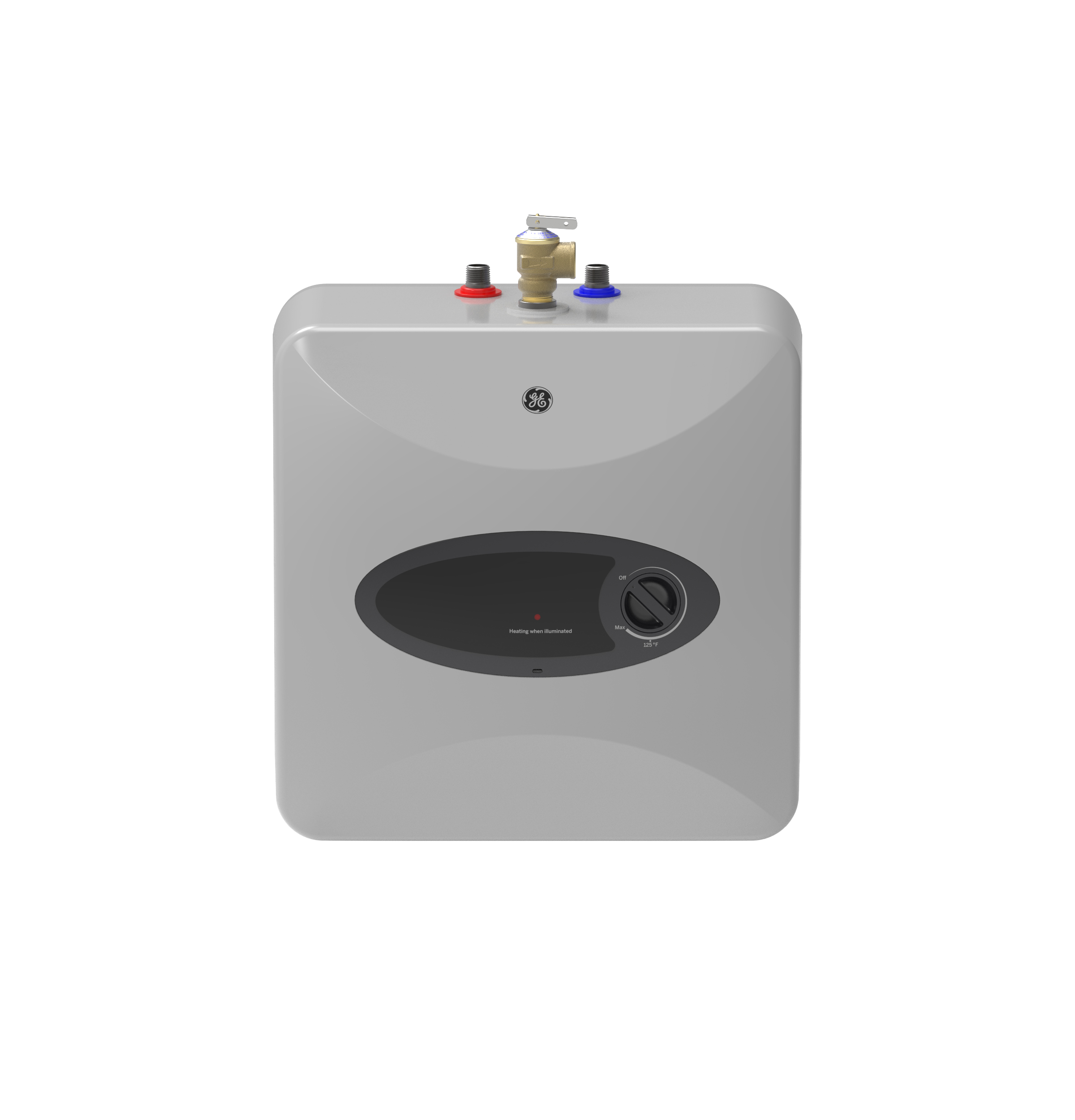

6 Gallon Electric Point of Use Water Heater
1 / 17
GE

6 Gallon Electric Point of Use Water Heater

Model: GE06P08BAR

4.5 (4 reviews)
BrandGE
Model #GE06P08BAR
Width17.2 in.
Height17.75 in.
Depth14.37 in.
$269.00

Available to order · estimated to ship by Fri, Oct 2

Estimated to ship by Fri, Oct 2.

Call to Order: (732) 426-0990

Questions or ready to buy? Talk to a real appliance expert.

Dimensions: 17.2" W × 17.75" H × 14.37" DMeasure your space before ordering
Need help? (732) 426-0990
Pay over time with Affirm — available at checkout. Learn more

All Make Advantage

Bundle qualifying appliances to unlock All Make Advantage (save $90–$1,000)

At a glance

GE GE06P08BAR is an electric water heater, 17.2 inches wide. It is listed as a point of use water heater.

Specifications

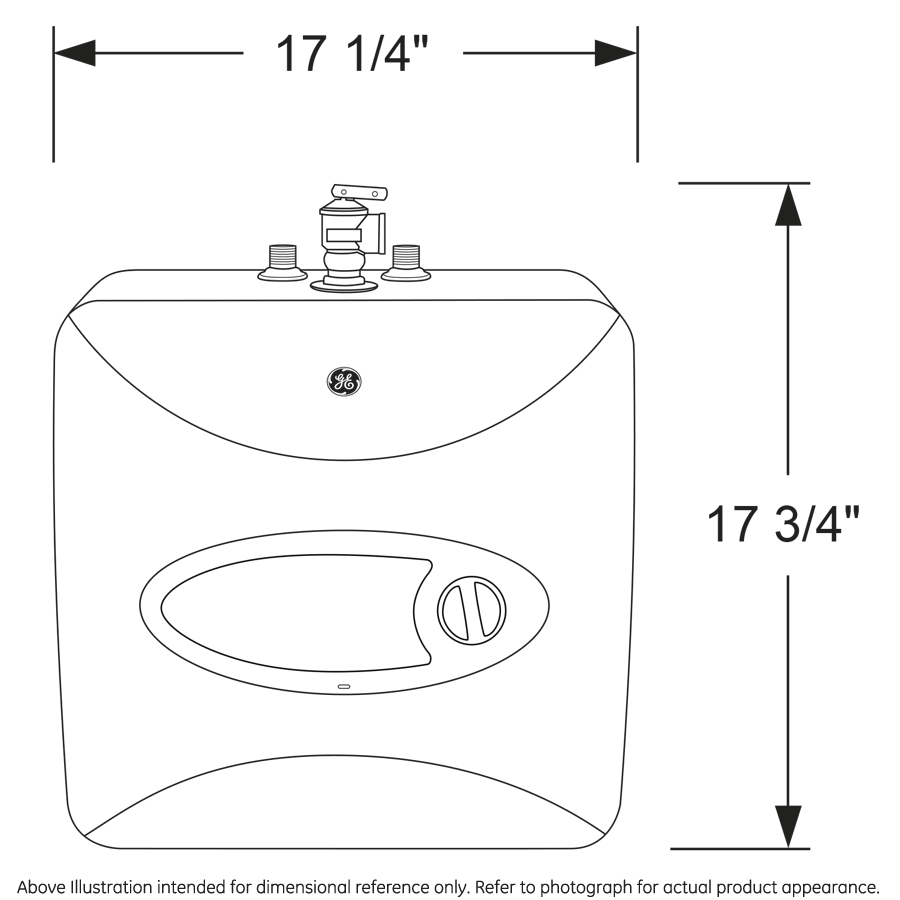

Dimensions

Overall Width17.2 in
Overall Height17.75 in
Product Height (to Top Of Unit)17.75 in
Overall Depth14.37 in
Net Weight16.9 lb
Connection Sizes - Water Inlet (mnpt)1/2"
Connection Sizes - Hot Water Outlet (mnpt)1/2"
Product Diameter17.200 in
Width17.2 in.
Height17.75 in.
Length14.37 in.
Weight16.9 lbs.

Features

Power Cord Length6' Included
ControlsMechanical Temperature Control
Max. Operating Pressure (psi)150
Temp & Pressure Relief ValveTop
Height DescriptionPoint of Use
Max: Operating Pressure (psi)150
Heating ElementStainless steel
Fuel TypeElectric
Rv ReadyYes
ConfigurationSpace Saver
Installation LocationIndoor
Product TypeElectric Point Of Use

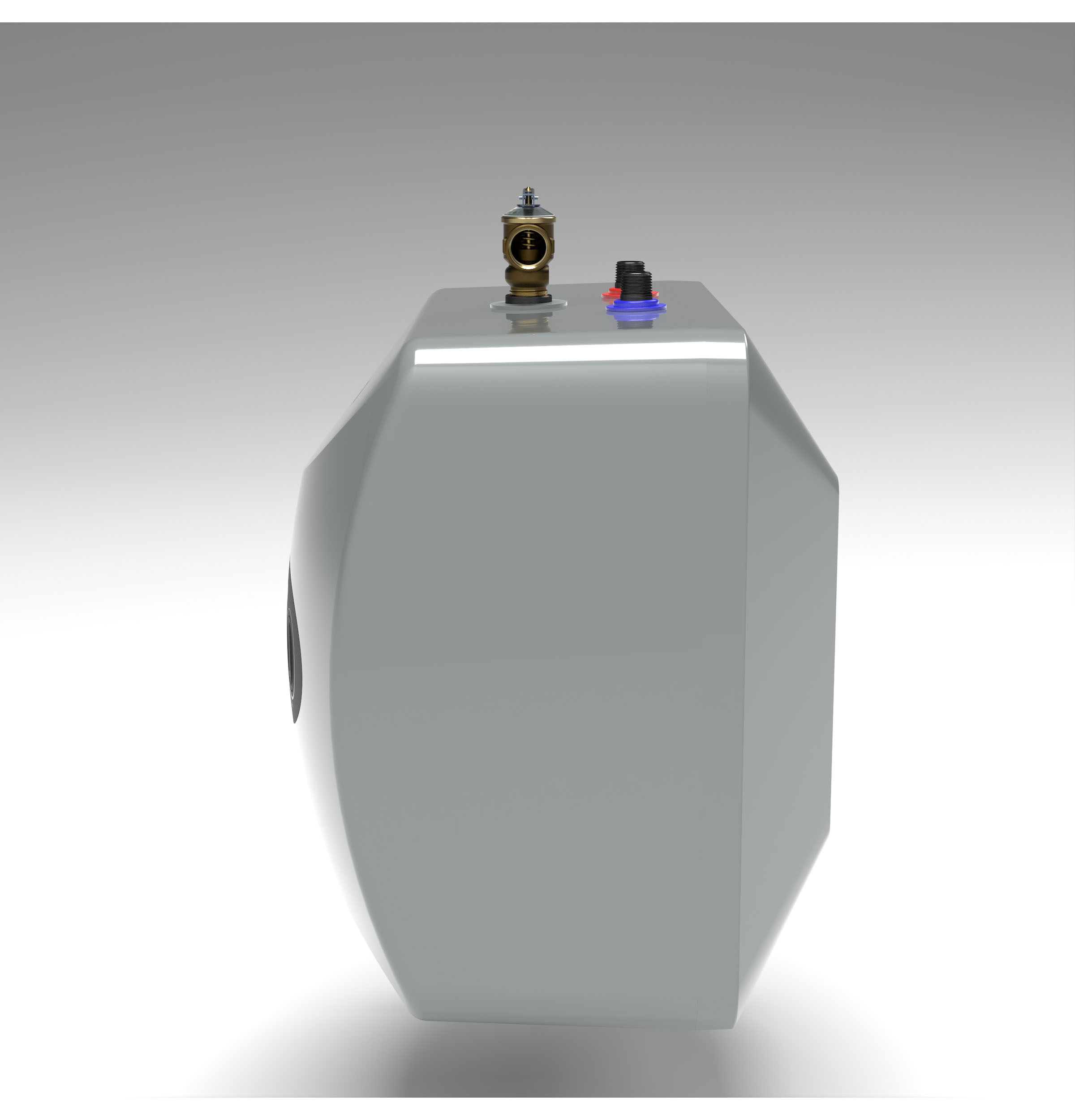

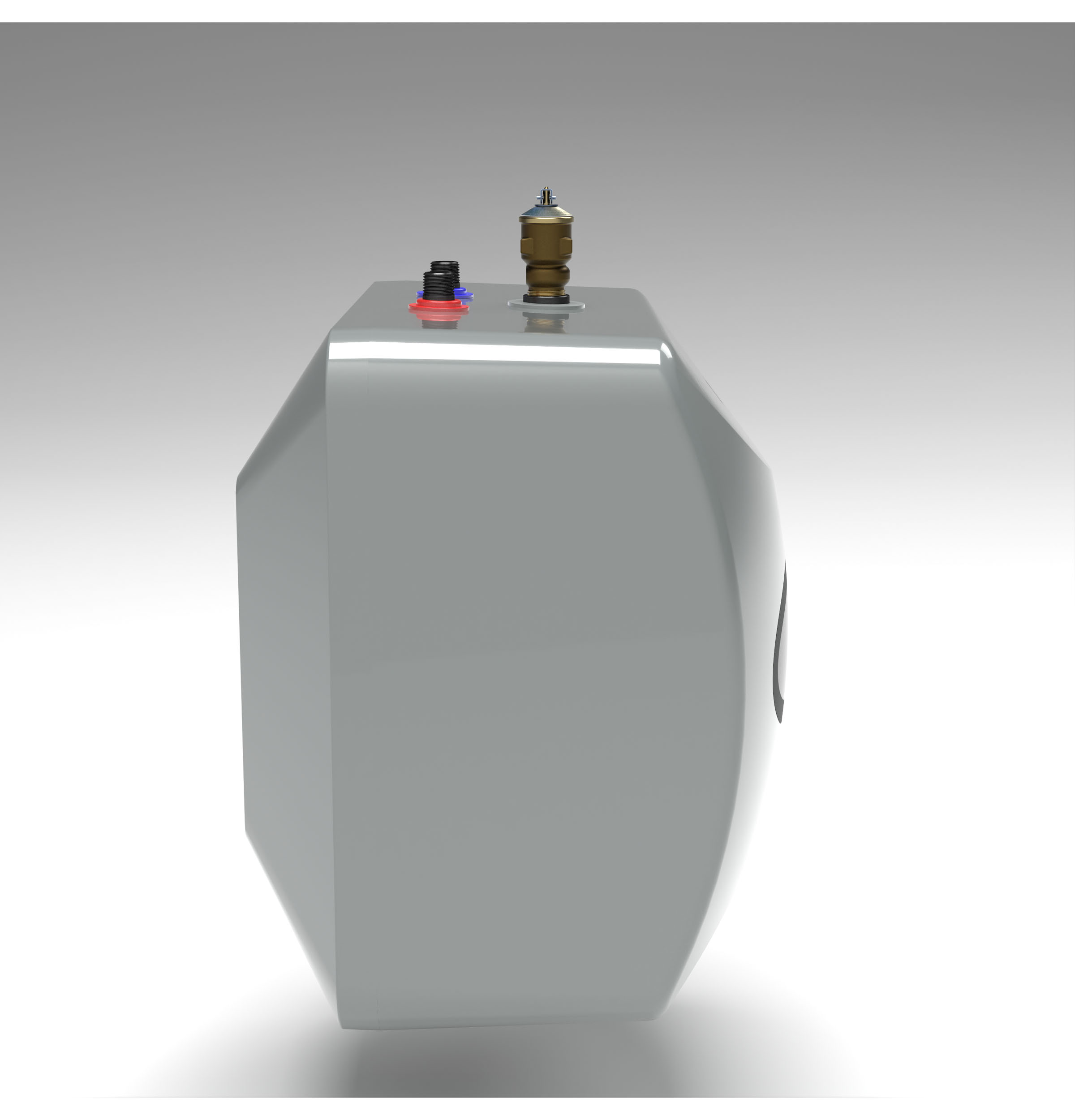

Water Connection LocationTop
Point Of UseYes
Anode RodAluminum
Temperature Setting70-140° F Range
Rated Capacity6.0 gal
Mounting TypeWall or Floor

Appearance

InstallationFree-Standing
Color AppearanceGray

Power & Ratings

Power Rating-kw1.44
Amps12
Hertz60
Voltage (max)120 V

Capacity

Unit Capacity6 Gallons

Warranty

Parts (tank)8 Year

Product Features

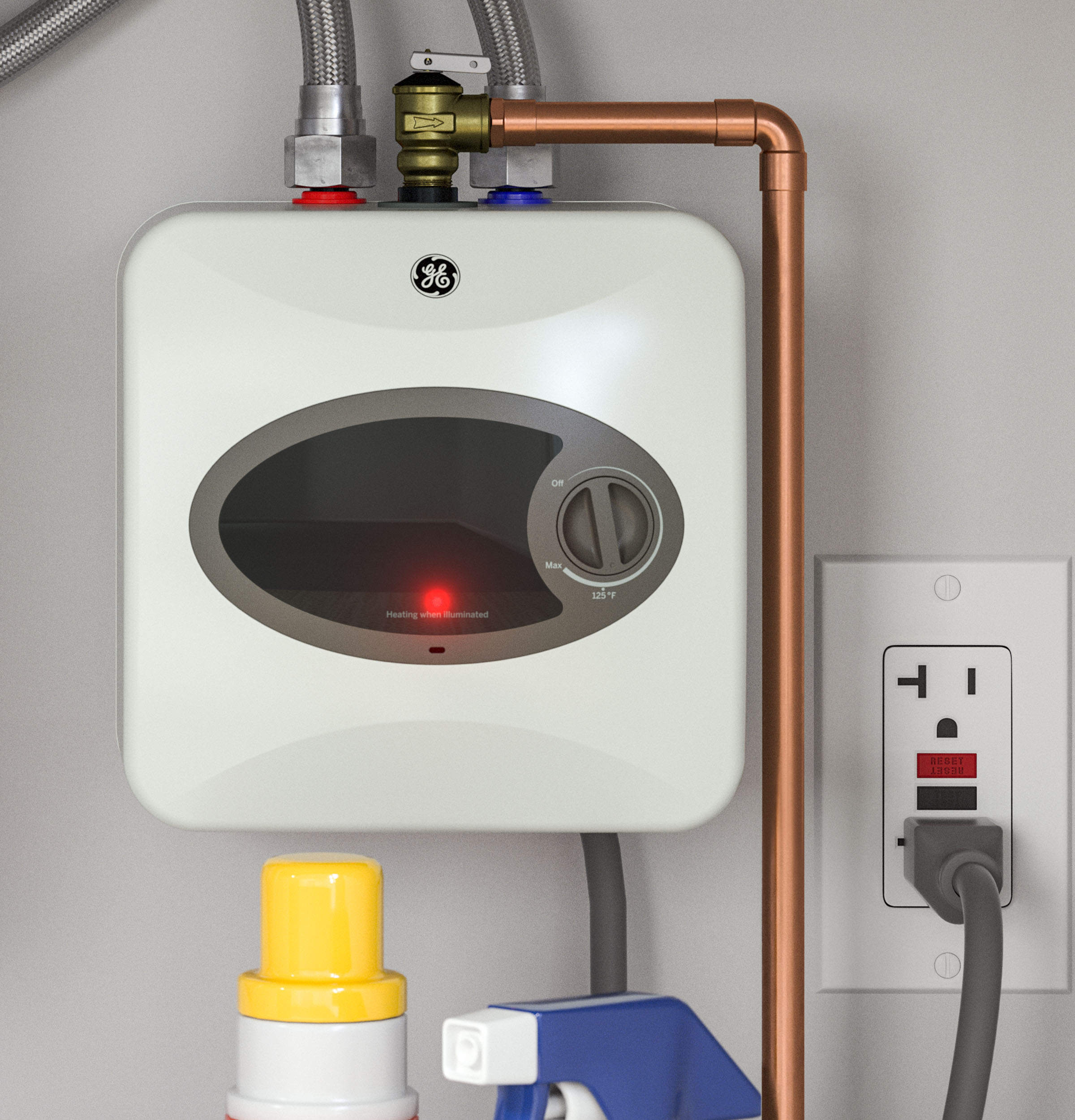

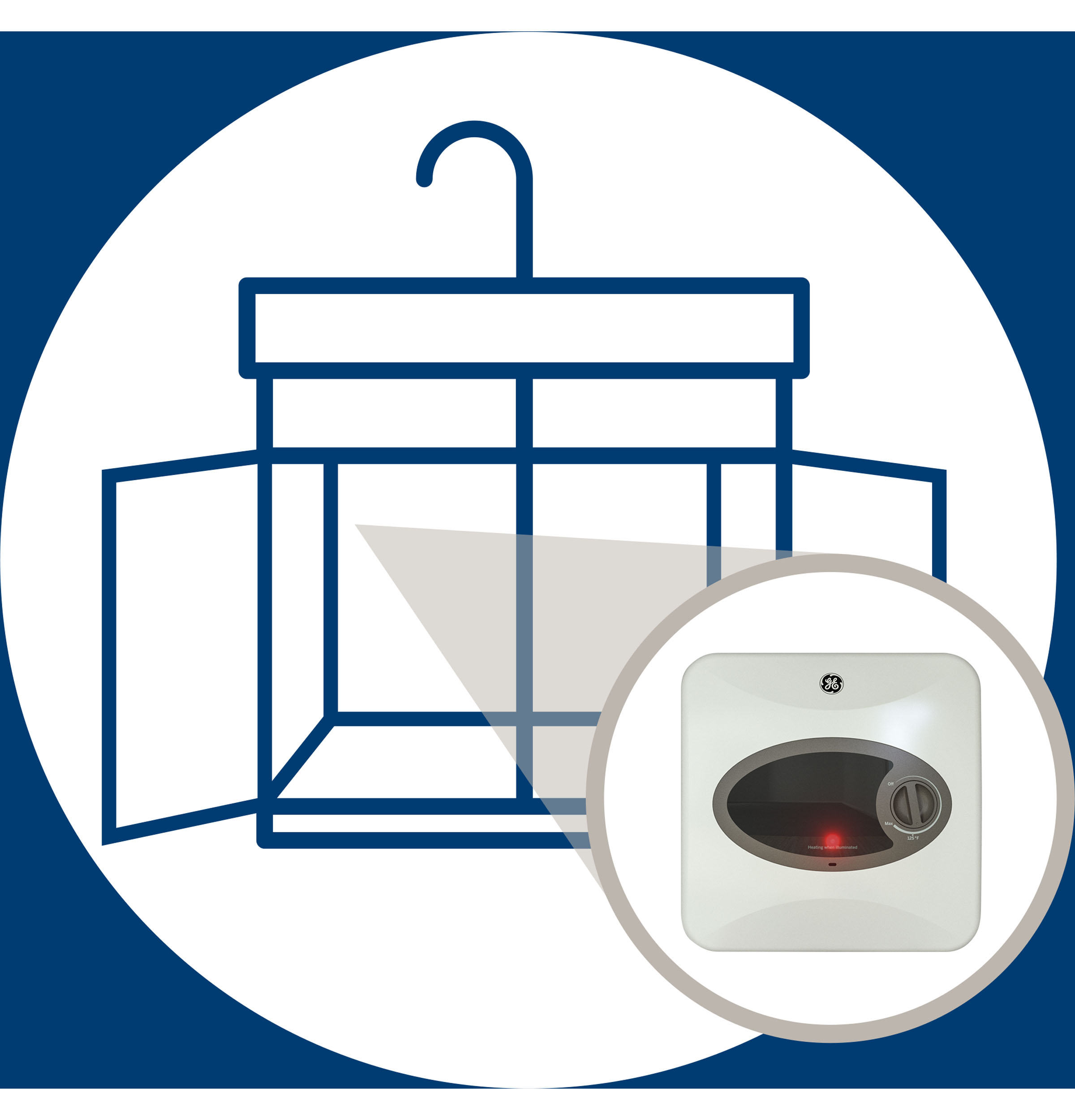

Point of Use

Point of Use

Installs on-location for hot water where you need it

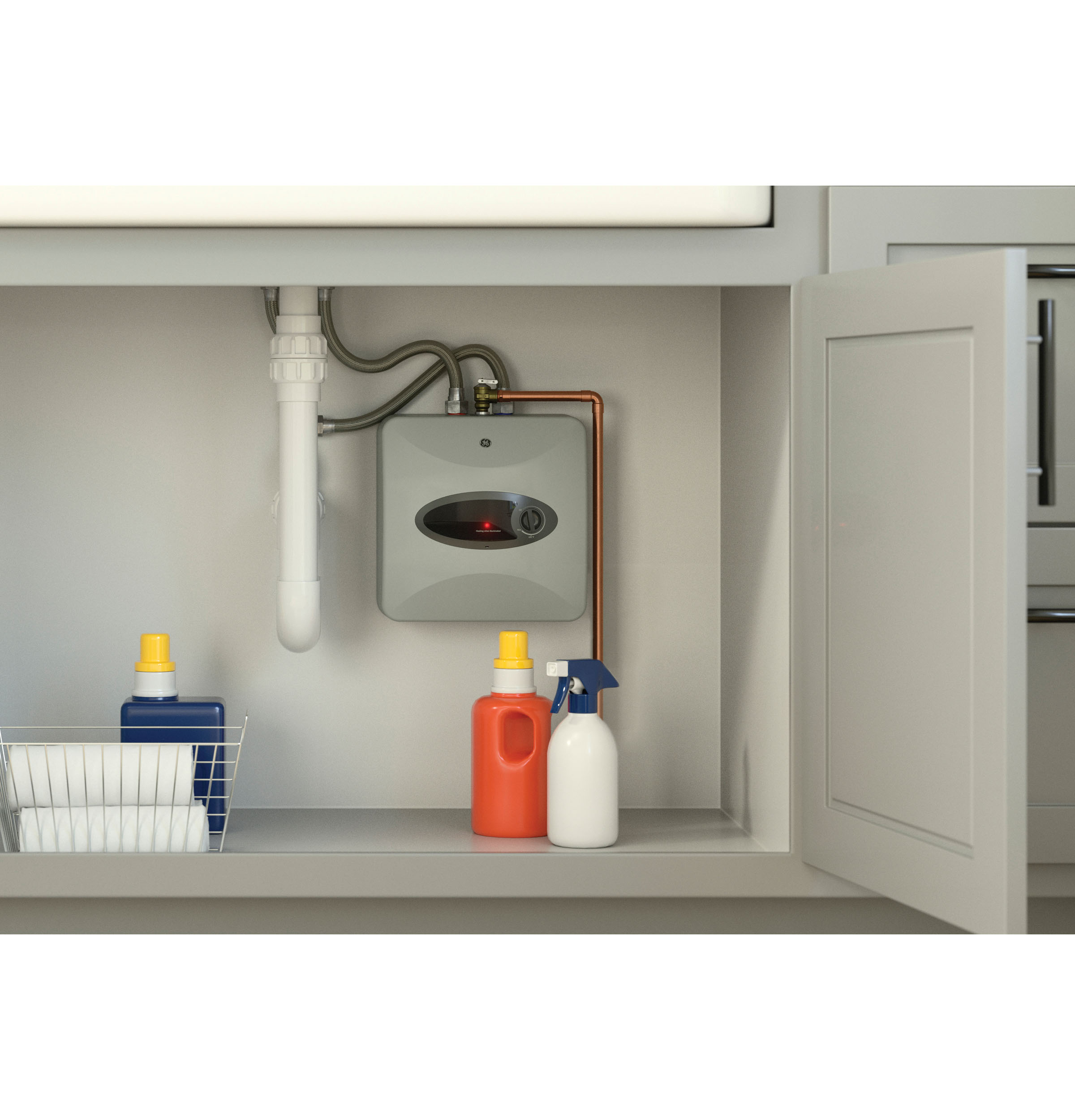

Compact Design

Compact Design

Ideal in limited spaces like kitchens, bathrooms, laundry rooms, cabins, RVs, garages, sheds, etc

120 Volt

120 Volt

Connects into any 120-Volt supply

Hot Water Booster

Hot Water Booster

Works as a standalone unit, or inline with another water heater to boost long pipe runs or washing machines

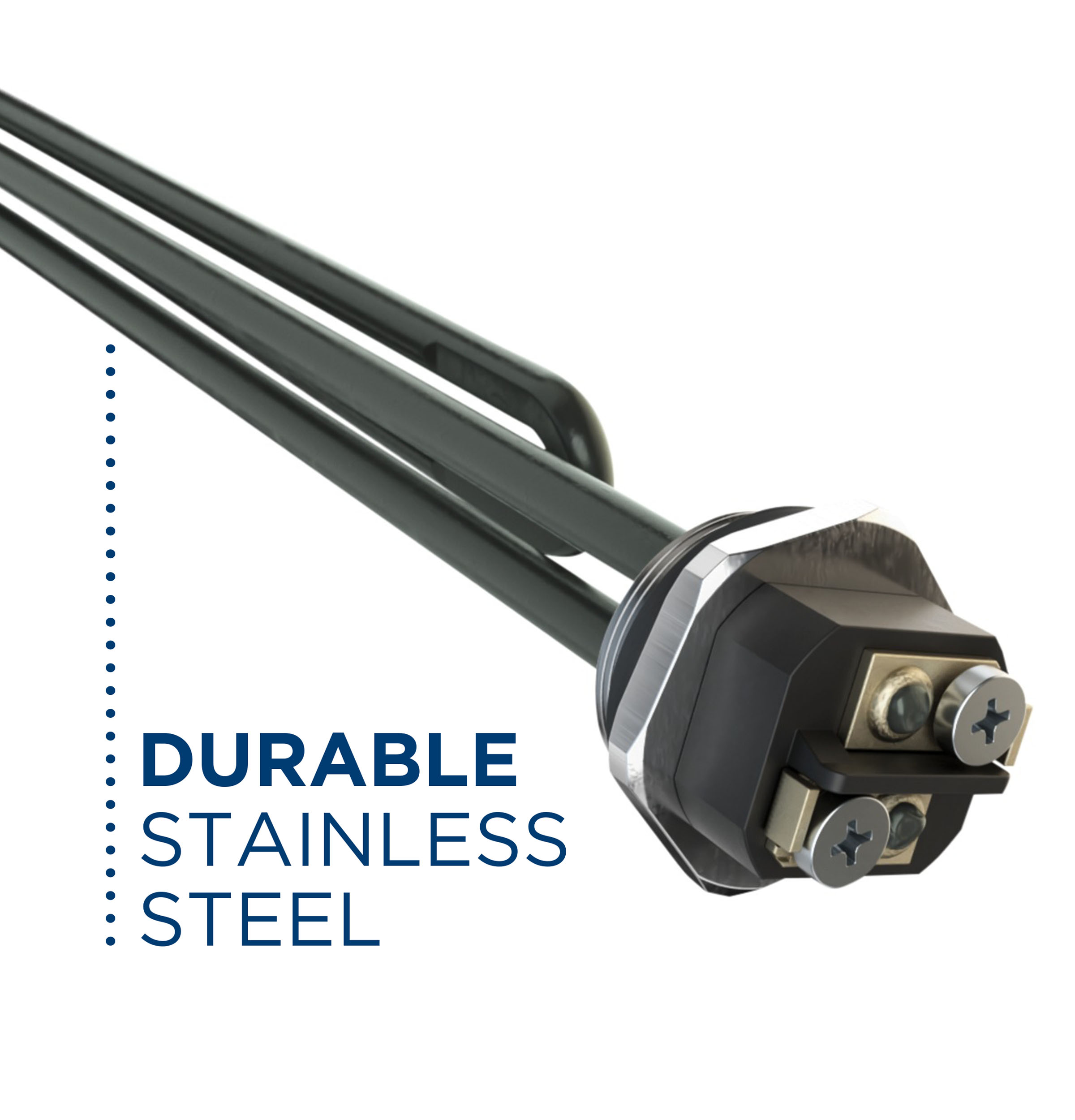

Stainless Steel Heating Element

Stainless Steel Heating Element

Provides reliable heat with ultra-durable design that resists rust and corrosion

Anode Rod

Anode Rod

Durable design extends the life of your water heater with long-lasting protection against corrosion

Intuitive Controls

Intuitive Controls

Easily adjust water temperature and power at the turn of a knob

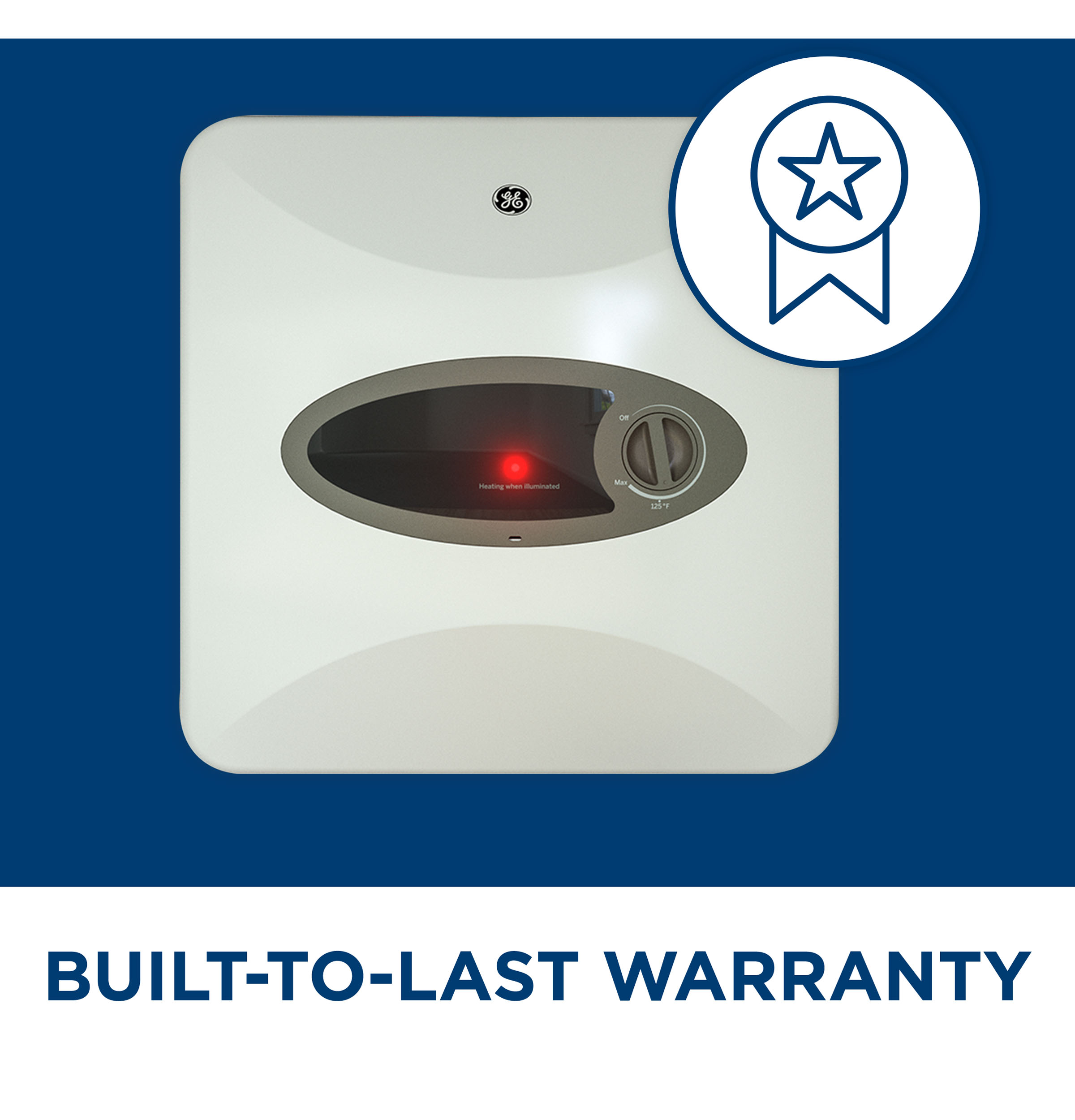

Built-To-Last Warranty

Built-To-Last Warranty

8-year limited replacement warranty

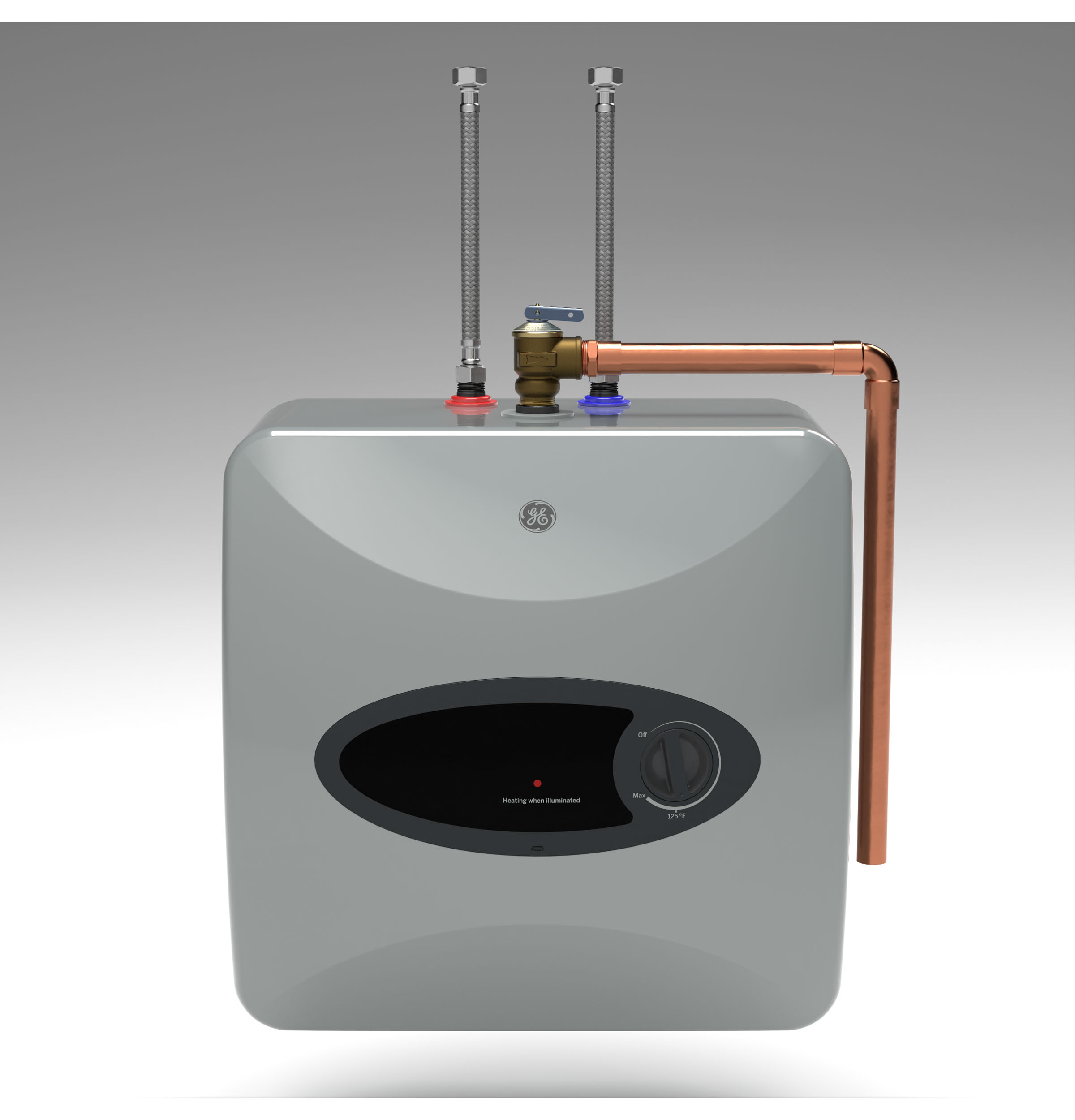

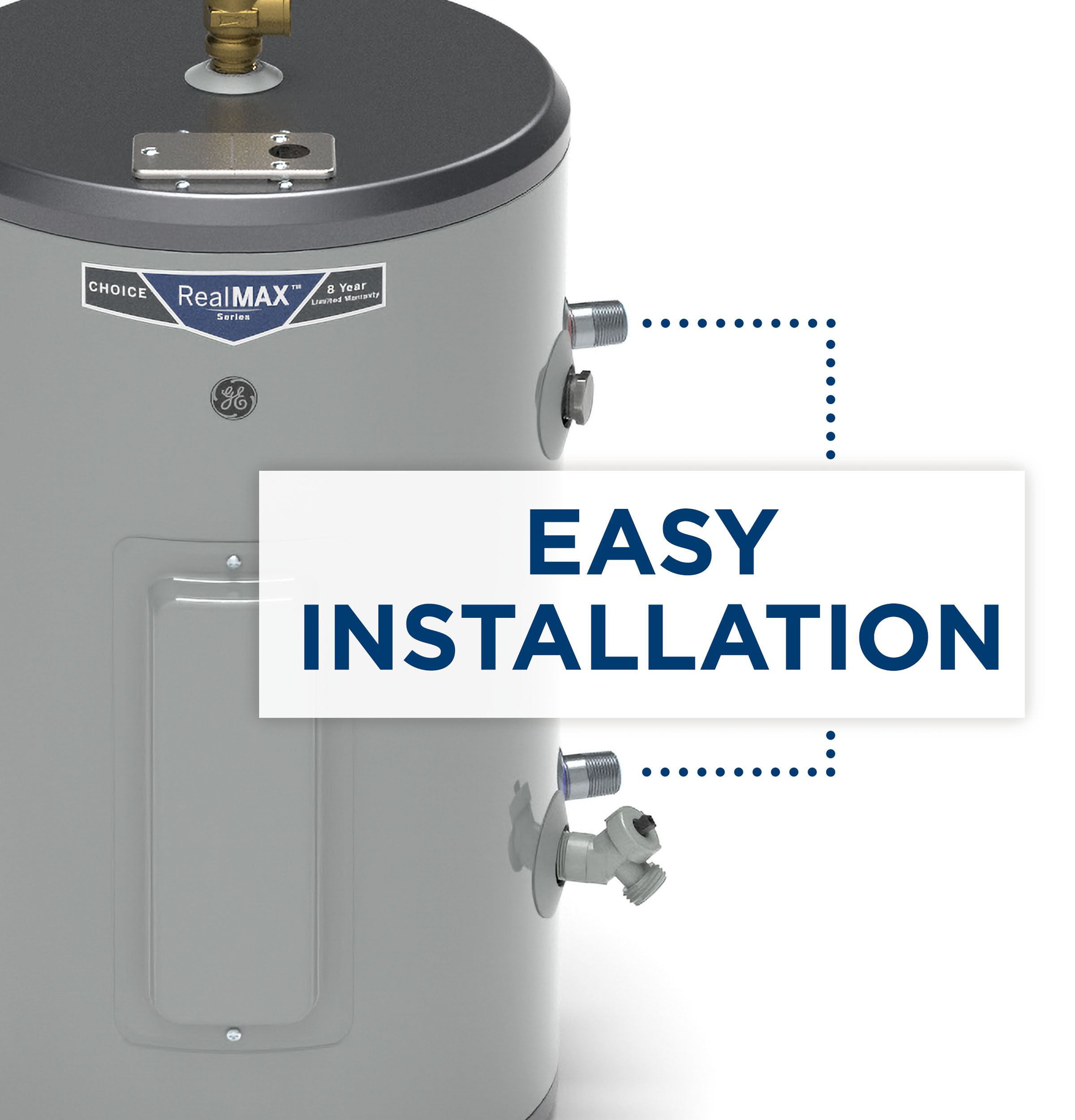

Easy Installation

Easy Installation

Uses standard 1/2-in NPT water connections for simple installation

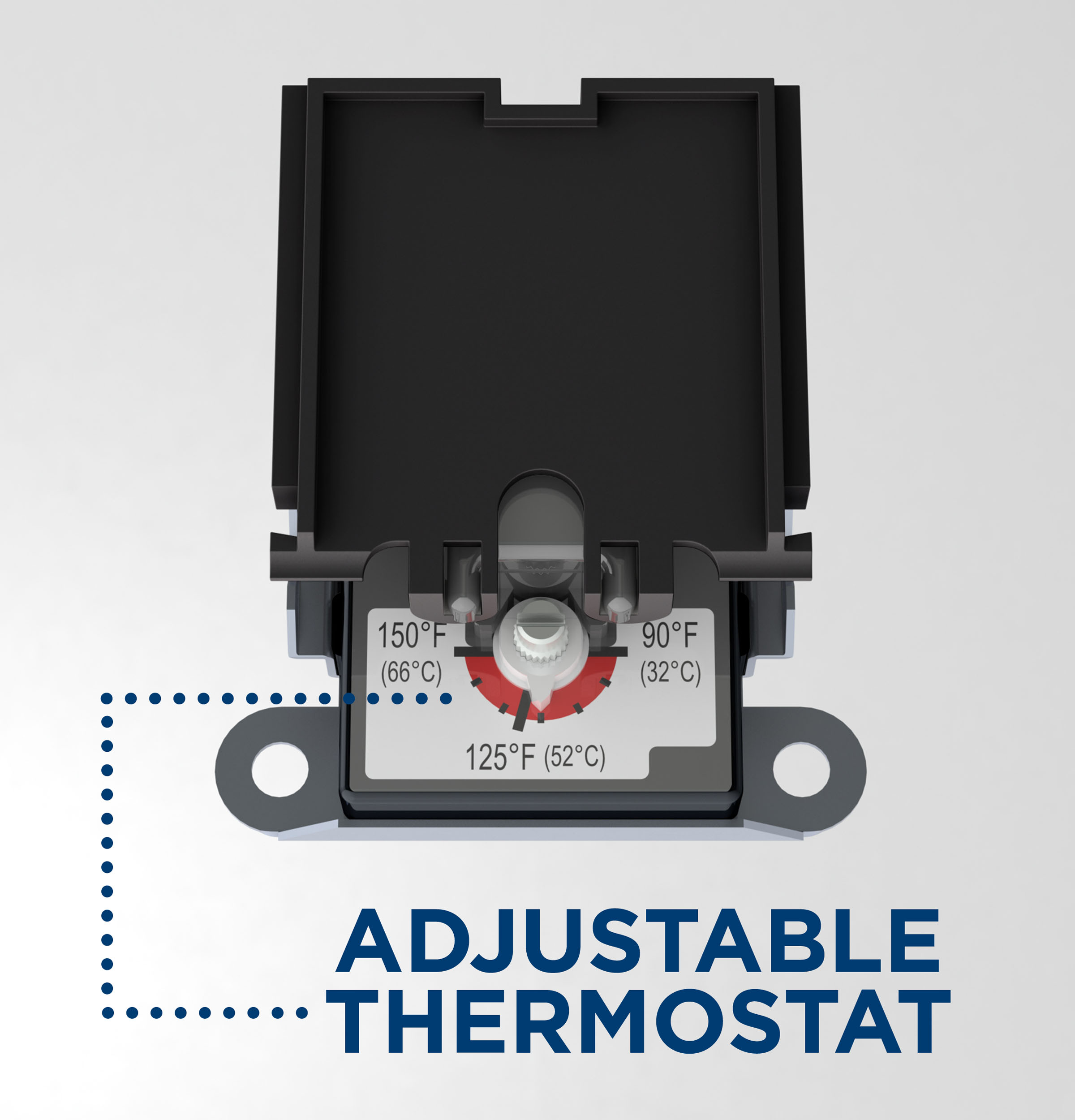

Adjustable Thermostat

Adjustable Thermostat

Easily change temperatures to your desired settings

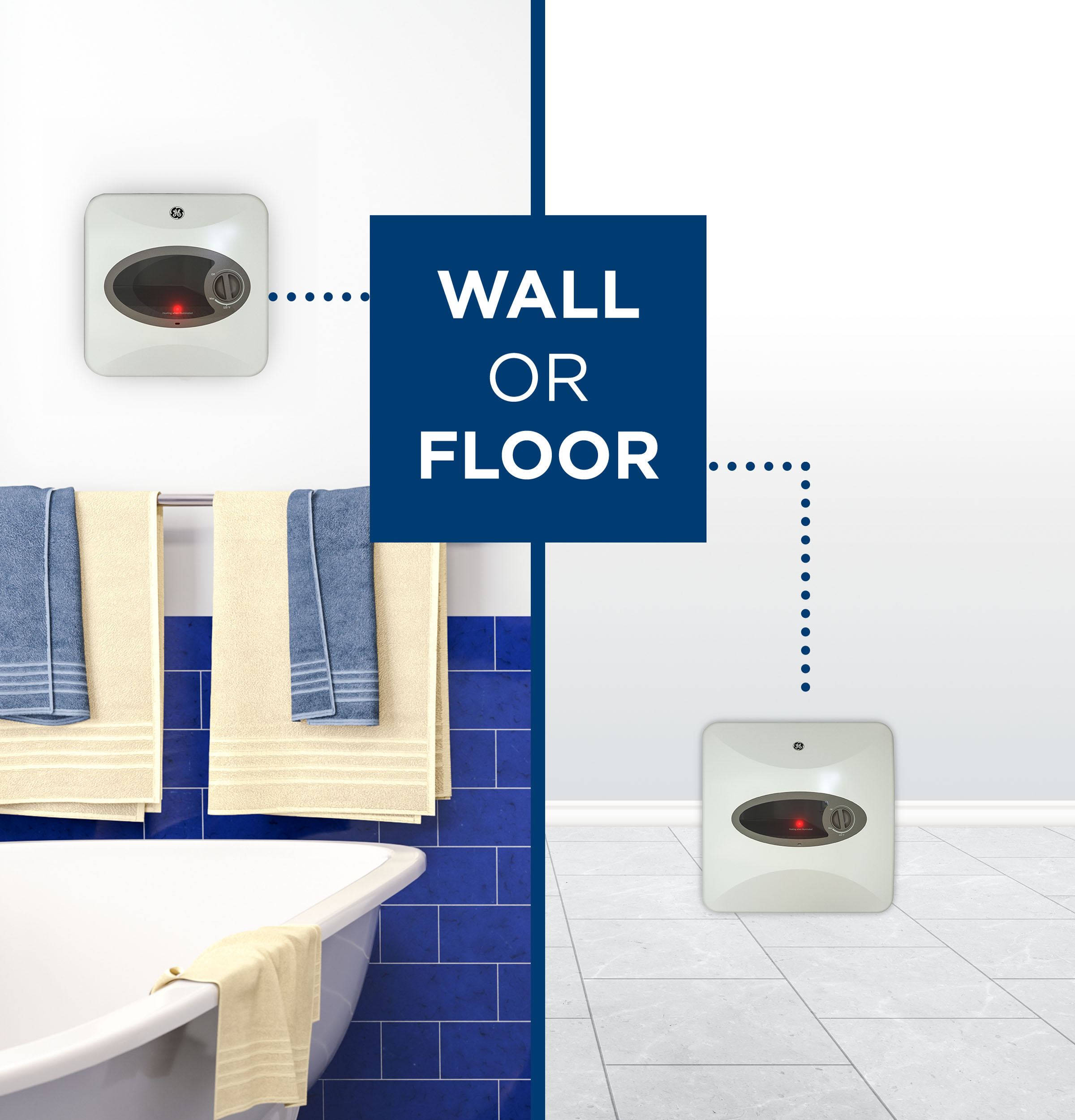

Wall or Floor Mounted

Wall or Floor Mounted

Compact, space-saving design can be mounted on the wall or floor

Product Documents

Customer Reviews

4.5 (4)

Manufacturer reviews · owners of this model, published on the manufacturer’s site

  • It installed very easily and without any modifications. About the only topic of contention might be the documentation. The Install booklet was well written and illustrated nicely to help . . .And it did. Having put a few of these units in, and being somewhat familiar with their basic designs, I was surprised that the enclosed install booklet made no mention of the Anode Rod. I was pretty sure this model had one but As I mentioned, there wasn't anything said about where it was located and how often to heck it. Maybe it's because I've been burnt in the past by overlooking the maintenance on the Anode rod. Wanting further information , I went on the GE website and looked up this unit. Color me surprised when I found another booklet listed for my model but contained additional information about the Anode Rod. One of the Customer Service folks came online and when I mentioned what I had found, he replied that there were few differences between the two booklets but didn't seem to be bothered by the discrepancies. Like I said, color me surprised! ! ! But, wanting to leave on a more positive note, I have it installed and went in without a hitch . .. And looking forward to providing us with ample hot water a lot faster than from way across the house. Too much wasted water that way! ! !

    The Woodmeister03/09/2026 02:37 AM

  • We added this to our 3rd floor master bathroom and it was so easy! The guys were done before I knew it! A great product when it takes a bit for hotwater to come from the main tank.

    Lola Elle11/26/2025 09:59 PM

  • It works great for our dog bath at 4Paws River Lodge.

    4Paws River Lodge08/27/2024 06:41 PM

  • 1-Mounting bracket seems not as sturdy as it could be, there's a lot of movement side to side after mounting the heater and I'll probably add a bracket under the heater because of this; it will be even heavier when full of water. 2-I screwed into the studs with the provided hardware and one of the screws just snapped in half with very little torque, even pre-drilled the holes-luckily I had a threaded bolt that is the right size which I used instead. Not a huge deal, but doesn't scream top quality. 3-The water heater itself has inlet and outlet on the top, and no drain. It says if the heater won't be used for awhile, to disconnect the connections and drain it. Used swivel unions so it will be easier to disconnect, but the idea that the manual says I should take the heater off the wall and tip it over to drain it and siphon as needed, seems ludicrous. Not convenient. It seems like a good size, so we'll see how the performance is. So far not super impressed.

    MJudd08/09/2024 05:21 PM
