| Brand | GE |
| Model # | AZ45E07DAB |
| Width | 42 in. |
| Height | 16 in. |
| Depth | 20.81 in. |
Who it’s for
Sized for a specific room — 7,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 300 sq ft.

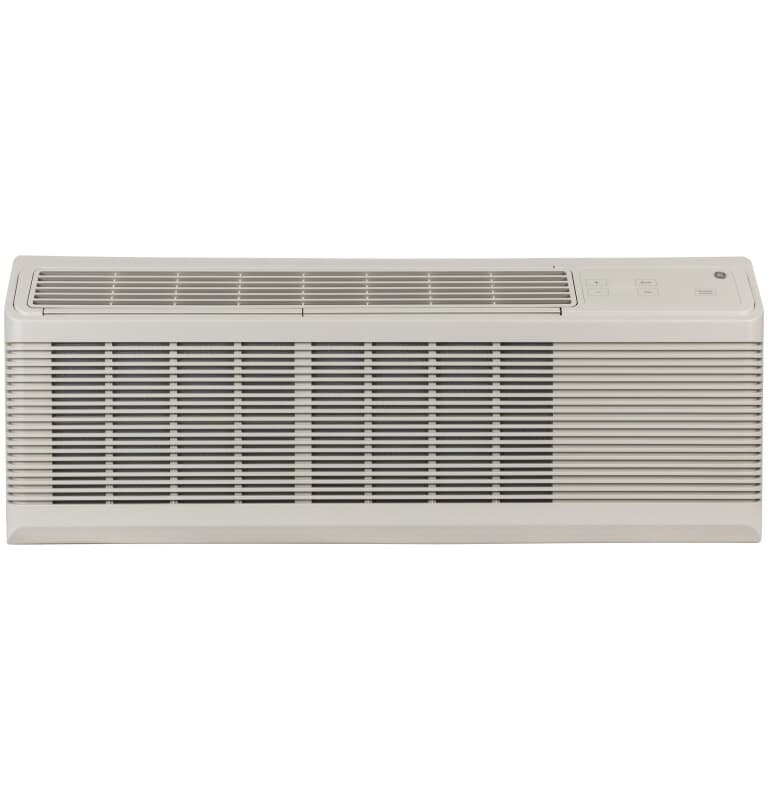

Zoneline Cooling and Electric Heat Unit 7,000 BTU, 230/208 Volt
Model: AZ45E07DAB
4.5 (2 reviews)This model is discontinued
The Zoneline Cooling and Electric Heat Unit 7,000 BTU, 230/208 Volt is discontinued and cannot be ordered.
GE replaced this model with the Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 7,000 BTU, 230/208 Volt.
Now available
Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 7,000 BTU, 230/208 Volt
$1,320.00
$12 less than the model it replaces
- Same 42" width
- Same 20.81" depth
- Same 16" height
Equivalent replacement — ships as the current model
Need help finding a replacement? Call (732) 426-0990
Was $1,332 when available
At a glance
GE AZ45E07DAB is an air conditioner in Gray, 42 inches wide. It suits a specific room.
Specifications
Dimensions
Capacity
Features
Power & Ratings
Appearance
Warranty
Product Features
Cooling capacity
7,200/7,000 BTU
Energy efficiency
13.4 EER
Dehumidification
1.7 pints/hour
Indoor fan CFM (high/low)
409/250
Fresh air vent CFM (fully open high fan)
33
Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room
Electronic touch controls with LED display
R-410A refrigerant
SMC base pan
Simplified structure
Easy to maintain and service
Designed & Assembled in America
Product Documents
Accessory Guide For AZ45E07DAB
Guide10.59 MB
Architect And Engineering Manual For AZ45E07DAB
Document6.87 MB
Feature Highlights For AZ45E07DAB
Brochure133.03 KB
Installation Instructions For AZ45E07DAB
Installation Guide12.83 MB
Literature For AZ45E07DAB
Document1.62 MB
Quick Reference Guide For AZ45E07DAB
Quick Start Guide11.07 MB
Quick Specs For AZ45E07DAB
Spec Sheet167.53 KB
Sales Guide For AZ45E07DAB
Guide1.59 MB
Customer Reviews
Manufacturer reviews · owners of this model, published on the manufacturer’s site
easy product to maintain,replace,manage and operate.
The colonnade01/02/2020 03:24 PM
I recently moved in to a hotel which included a GE ac / heater..so anyway it was terrible.. 1. It was noisy because it hasn't been cleaned in I mean a really good clean so i removed it from the sleeve...... cleaned it up aired out fins to the condenser and reinstalled unit ba in to sleeve......and plugged her up you know what it was purring & quite smooth fan running......but for the touch pad is not cool ..my kids love to push the word off as if it was a button now them little fingers put a hole 🕳️ rite through.. because it has no support behind the word off....but a very reliable unit easy to maintain
WBoy8202/23/2025 12:28 PM
Common questions
- Is the GE AZ45E07DAB sized for a specific room?
- Yes — 7,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 300 sq ft.
- What warranty comes with the GE AZ45E07DAB?
- The GE Zoneline Cooling and Electric Heat Unit 7,000 BTU, 230/208 Volt is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.
