| Brand | Hotpoint |
| Model # | AHHS09D2XXA |
| Width | 42.4 in. |
| Height | 16 in. |
| Depth | 20.9 in. |
$812.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Width42.4 in.
Height16 in.
Length20.9 in.
Weight86 lbs.
Overall Depth20 9/10 in
Overall Height16 in
Overall Width42 2/5 in
Net Weight86 lb
Features

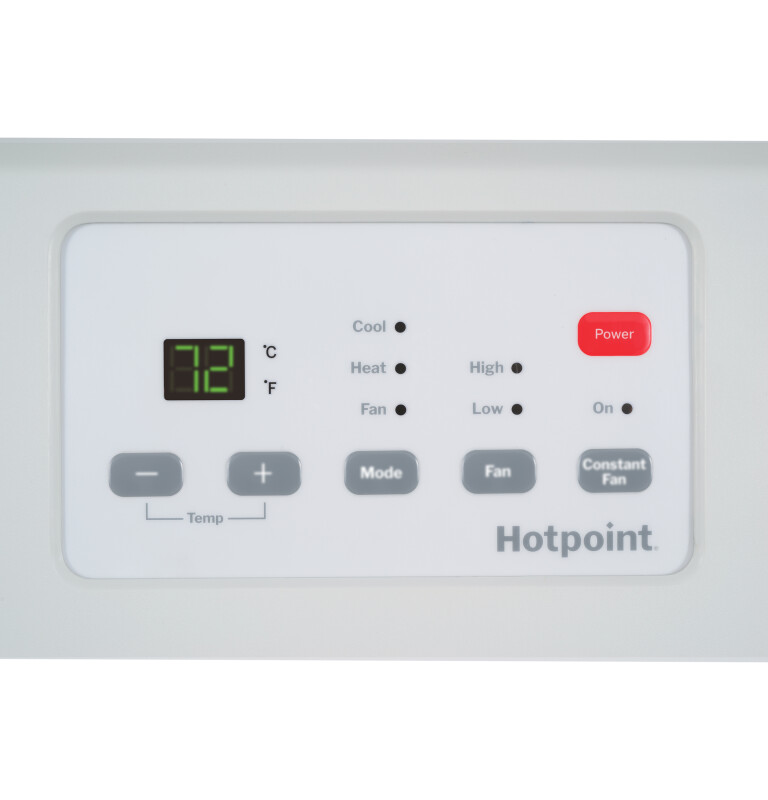

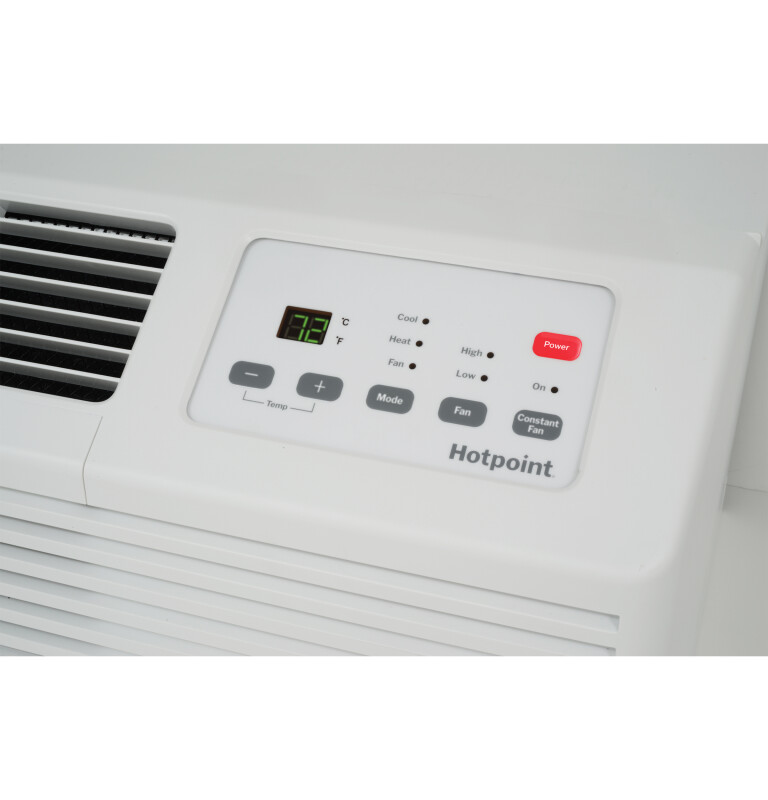

Control TypeElectronic
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR32
Temperature Range62 - 80 F
Fan Speed Selections2 Cooling, 2 Fan Only, 2 Heating
Unit FeaturesAuto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Power Cord (LCDI) included, Remote Thermostat Compatibil
Auto Power RecoveryYes
Chassis TypeSlide-In
Heat - CoolYes
Heat PumpYes
Heating - Reverse Cycle - Cop3.3/3.3
Manual Vent ControlHidden
Outdoor Vent / ExhaustYes
Rotary CompressorYes
Venting FeaturesConcealed Manual Vent Control
"smartfan" Fan CycleYes
Discharge Grille2-position
Fan Motor1
Heating SystemHeat Pump with Resistance Backup
Capacity
Cooling Eer (btuh / Watt)11.3/11.4
Heating - Reverse Cycle - Btuh8400/8100
Cooling Btuh (max)9400.0 Btu
Cooling Btuh (min)9200.0 Btu
Appearance
InstallationThrough-the-Wall
Color AppearanceWhite
Power & Ratings
Cooling - Watts830/850
Cooling - Amperes3.9/3.7
Voltage (max)230.0 V
Voltage (min)208.0 V
Heat Pump - Amps4.3/4.7
Heat Pump - Watts745/715
Claims & Certifications
745/715Yes
Warranty
Labor WarrantyLimited 1-year entire appliance, Limited 5-year sealed system
Parts WarrantyLimited 2-year entire appliance
