Is the Hotpoint AHHS12D3XXA in stock?

The Hotpoint Ptac Heat Pump With Electric Heat Backup 12,000 Btu, 230/208v, 20amp is available to order — estimated to ship by Fri, Oct 30.

Is the Hotpoint AHHS12D3XXA sized for a specific room?

Yes — 12,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 550 sq ft.

Does the Hotpoint AHHS12D3XXA qualify for free shipping?

Yes in the NJ/NY metro area on orders over $499. Regional delivery is free over $899, and nationwide delivery is free over $1,999.

What warranty comes with the Hotpoint AHHS12D3XXA?

The Hotpoint Ptac Heat Pump With Electric Heat Backup 12,000 Btu, 230/208v, 20amp is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.

$845.00

Available to order

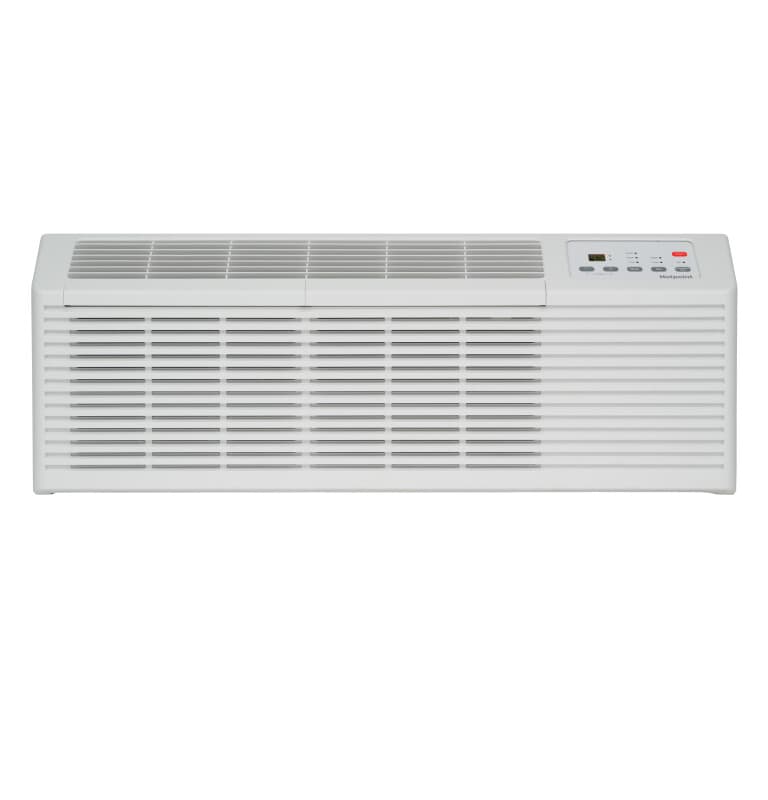

Ptac Heat Pump With Electric Heat Backup 12,000 Btu, 230/208v, 20amp

Hover to zoom

1 / 5

Brand	Hotpoint
Model #	AHHS12D3XXA
Width	42.4 in.
Height	16 in.
Depth	20.9 in.

Who it’s for

Sized for a specific room — 12,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 550 sq ft.

All Make Advantage

Bundle qualifying appliances to unlock All Make Advantage (save $90–$1,000)

HotpointAuthorized Dealer

Ptac Heat Pump With Electric Heat Backup 12,000 Btu, 230/208v, 20amp

Name: Hotpoint Ptac Heat Pump With Electric Heat Backup 12,000 Btu, 230/208v, 20amp
Brand: Hotpoint
SKU: AHHS12D3XXA
Price: 845 USD
Availability: BackOrder

Model: AHHS12D3XXA

$845.00

Estimated to ship by Fri, Oct 30.

Available to order · estimated to ship by Fri, Oct 30

Free Delivery in NJ/NY Metro

In stock now— A comparable model

Ptac Heat Pump With Electric Heat Backup 15,000 Btu, 230/208v, 20amp

Ships next business day · $905.00 · only 2 left

View in-stock model →

Installation & Removal

Haul away old appliance+$39

Installed by our own team · connection to existing lines only, no modifications

Delivery & installation details →

Call to Order: (732) 426-0990

Questions or ready to buy? Talk to a real appliance expert.

§ On purchases of $199+ with your Synchrony HOME™ Credit Card. See offer details

Family-owned since 2009
·
Jackson, NJ showroom
·
Lowest Price Guarantee

Pay over time with Affirm — available at checkout. Learn more

Dimensions: 42.4" W × 16" H × 20.9" DMeasure your space before ordering

At a glance

Hotpoint AHHS12D3XXA is a ptac unit in White, 42.4 inches wide. It suits a specific room.

Specifications

Dimensions

Width42.4 in.

Height16 in.

Length20.9 in.

Weight95 lbs.

Overall Depth20 9/10 in

Overall Height16 in

Overall Width42 2/5 in

Net Weight95 lb

Features

Control TypeElectronic

Product TypePackaged Terminal Air Conditioners (PTAC)

Refrigerant TypeR32

Temperature Range62 - 80 F

Fan Speed Selections2 Cooling, 2 Fan Only, 2 Heating

Unit FeaturesAuto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Power Cord (LCDI) included, Remote Thermostat Compatibil

Auto Power RecoveryYes

Chassis TypeSlide-In

Heat - CoolYes

Heat PumpYes

Heating - Reverse Cycle - Cop3.1/3.2

Manual Vent ControlHidden

Outdoor Vent / ExhaustYes

Rotary CompressorYes

Venting FeaturesConcealed Manual Vent Control

"smartfan" Fan CycleYes

Discharge Grille2-position

Fan Motor1

Heating SystemHeat Pump with Resistance Backup

Capacity

Cooling Eer (btuh / Watt)10.4/10.5

Heating - Reverse Cycle - Btuh11000/10800

Cooling Btuh (max)12400.0 Btu

Cooling Btuh (min)12200.0 Btu

Appearance

InstallationThrough-the-Wall

Color AppearanceWhite

Power & Ratings

Cooling - Watts1190/1160

Cooling - Amperes6.0/5.7

Voltage (max)230.0 V

Voltage (min)208.0 V

Heat Pump - Amps6.1.6.5

Heat Pump - Watts1160/1035

Claims & Certifications

1160/1035Yes

Warranty

Labor (entire Appliance)1 Year

Labor (sealed System)5 Year

Parts (entire Appliance)2 Year

Product Features

2 Fan Speeds

4 Temperature-Limiting Options

Auto Dimming Display

Slinger Ring Condensate Removal

Coverless Control Panel

Automatic Emergency Heat

Freeze/Frost & Overheat Protection

Auto Power Recovery

Self-Diagnostics

Constant Fan Button

Product Documents

Quick Reference Guide

Quick Start Guide3.61 MB

Quick Specs

Spec Sheet1.08 MB

Use And Care Manual

User Manual3.67 MB

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the Hotpoint AHHS12D3XXA in stock?: The Hotpoint Ptac Heat Pump With Electric Heat Backup 12,000 Btu, 230/208v, 20amp is available to order — estimated to ship by Fri, Oct 30.
Is the Hotpoint AHHS12D3XXA sized for a specific room?: Yes — 12,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 550 sq ft.
Does the Hotpoint AHHS12D3XXA qualify for free shipping?: Yes in the NJ/NY metro area on orders over $499. Regional delivery is free over $899, and nationwide delivery is free over $1,999.
What warranty comes with the Hotpoint AHHS12D3XXA?: The Hotpoint Ptac Heat Pump With Electric Heat Backup 12,000 Btu, 230/208v, 20amp is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.
