Is the Hotpoint AHES09D3XXA in stock?

The Hotpoint Ptac With Electric Heat 9,000 Btu, 230/208v, 20amp is available to order — estimated to ship by Fri, Oct 9.

Is the Hotpoint AHES09D3XXA sized for a specific room?

Yes — 9,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 400 sq ft.

Does the Hotpoint AHES09D3XXA qualify for free shipping?

Yes in the NJ/NY metro area on orders over $499. Regional delivery is free over $899, and nationwide delivery is free over $1,999.

What warranty comes with the Hotpoint AHES09D3XXA?

The Hotpoint Ptac With Electric Heat 9,000 Btu, 230/208v, 20amp is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.

$763.00

Available to order

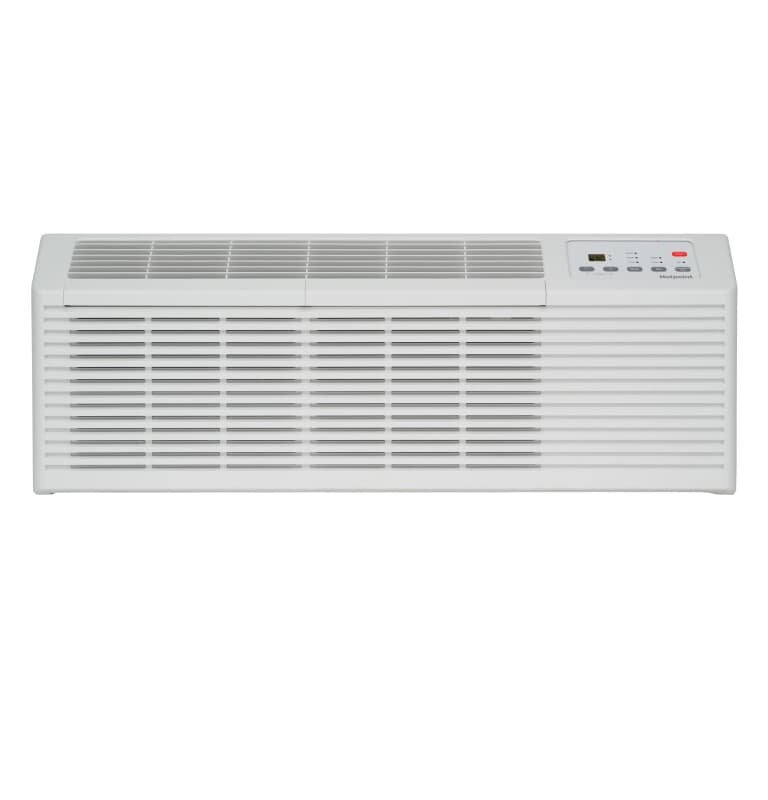

Ptac With Electric Heat 9,000 Btu, 230/208v, 20amp

Hover to zoom

1 / 5

Brand	Hotpoint
Model #	AHES09D3XXA
Width	42.4 in.
Height	16 in.
Depth	20.9 in.

Who it’s for

Sized for a specific room — 9,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 400 sq ft.

All Make Advantage

Bundle qualifying appliances to unlock All Make Advantage (save $90–$1,000)

HotpointAuthorized Dealer

Ptac With Electric Heat 9,000 Btu, 230/208v, 20amp

Name: Hotpoint Ptac With Electric Heat 9,000 Btu, 230/208v, 20amp
Brand: Hotpoint
SKU: AHES09D3XXA
Price: 763 USD
Availability: BackOrder

Model: AHES09D3XXA

$763.00

Estimated to ship by Fri, Oct 9.

Available to order · estimated to ship by Fri, Oct 9

Free Delivery in NJ/NY Metro

In stock now— A comparable model

115 Volt Built-In Cool-Only 12,000 BTU Room Air Conditioner

Ships next business day · $816.97

View in-stock model →

Installation & Removal

Haul away old appliance+$39

Installed by our own team · connection to existing lines only, no modifications

Delivery & installation details →

Call to Order: (732) 426-0990

Questions or ready to buy? Talk to a real appliance expert.

§ On purchases of $199+ with your Synchrony HOME™ Credit Card. See offer details

Family-owned since 2009
·
Jackson, NJ showroom
·
Lowest Price Guarantee

Pay over time with Affirm — available at checkout. Learn more

Dimensions: 42.4" W × 16" H × 20.9" DMeasure your space before ordering

At a glance

Hotpoint AHES09D3XXA is a ptac unit in White, 42.4 inches wide. It suits a specific room.

Specifications

Dimensions

Width42.4 in.

Height16 in.

Length20.9 in.

Weight84 lbs.

Overall Depth20 9/10 in

Overall Height16 in

Overall Width42 2/5 in

Net Weight84 lb

Features

Control TypeElectronic

Product TypePackaged Terminal Air Conditioners (PTAC)

Refrigerant TypeR32

Temperature Range62 - 80 F

Fan Speed Selections2 Cooling, 2 Fan Only, 2 Heating

Unit FeaturesAuto Power Recovery, Automatic Indoor Frost Control, Freeze Sentinel, Power Cord (LCDI) included, Remote Thermostat Compatibility (Accessory Kit Required)

Auto Power RecoveryYes

Chassis TypeSlide-In

Heat - CoolYes

Manual Vent ControlHidden

Outdoor Vent / ExhaustYes

Rotary CompressorYes

Venting FeaturesConcealed Manual Vent Control

"smartfan" Fan CycleYes

Discharge Grille2-position

Fan Motor1

Heating SystemElectric Resistance

Capacity

Cooling Eer (btuh / Watt)11.3/11.4

Cooling Btuh (max)9400.0 Btu

Cooling Btuh (min)9200.0 Btu

Appearance

InstallationThrough-the-Wall

Color AppearanceWhite

Power & Ratings

Heating - Electric - Heater Watts3500

Cooling - Watts830/805

Cooling - Amperes4.0/3.8

Voltage (max)230.0 V

Voltage (min)208.0 V

Claims & Certifications

208.0 VYes

Warranty

Labor (entire Appliance)1 Year

Labor (sealed System)5 Year

Parts (entire Appliance)2 Year

Product Features

2 Fan Speeds

4 Temperature-Limiting Options

Auto Dimming Display

Slinger Ring Condensate Removal

Coverless Control Panel

Automatic Emergency Heat

Freeze/Frost & Overheat Protection

Auto Power Recovery

Self-Diagnostics

Constant Fan Button

Product Documents

Quick Specs

Spec Sheet1.08 MB

Use And Care Manual

User Manual3.67 MB

Quick Reference Guide

Quick Start Guide3.61 MB
