Is the KitchenAid KOED530PPS good for even baking and roasting?

Yes — Convection is listed on this wall oven — a fan moves hot air around the cavity.

Is the KitchenAid KOED530PPS good for crisping without a countertop fryer?

Yes — Built-in air fry mode is listed on this model, so no separate countertop fryer is needed.

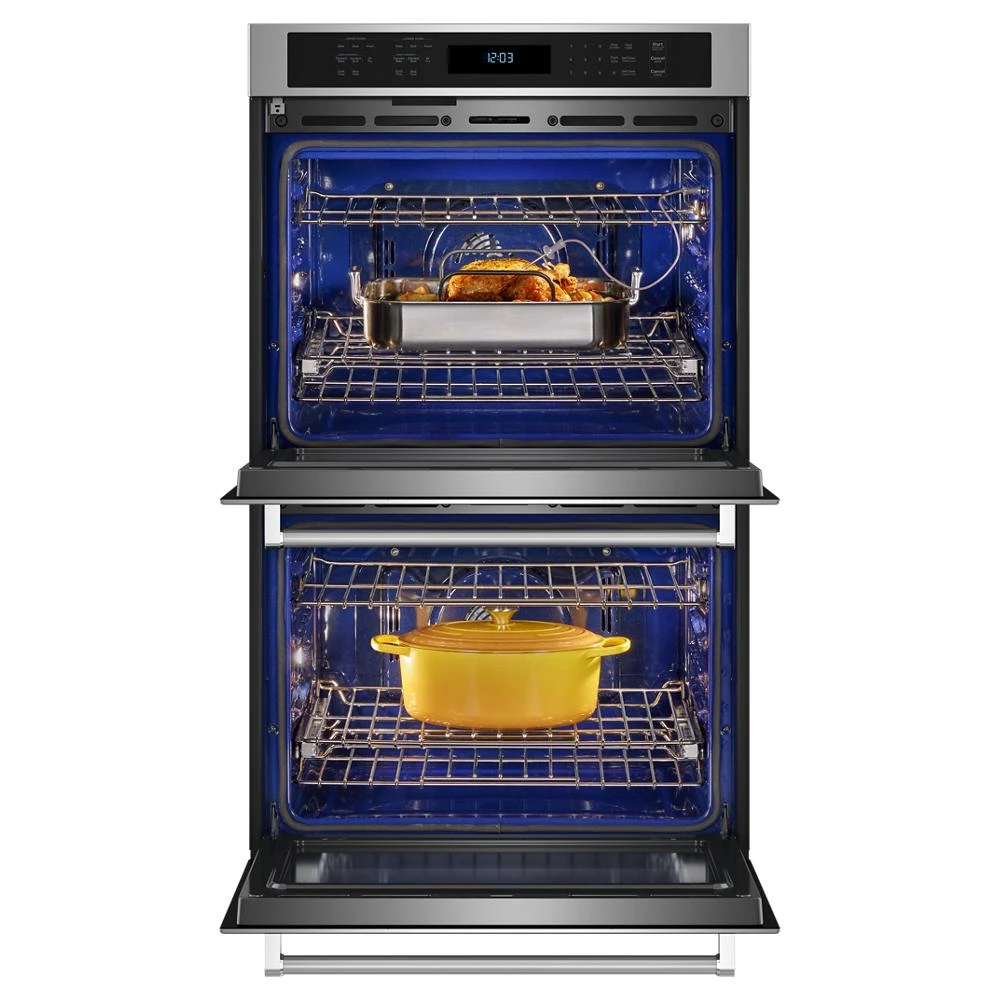

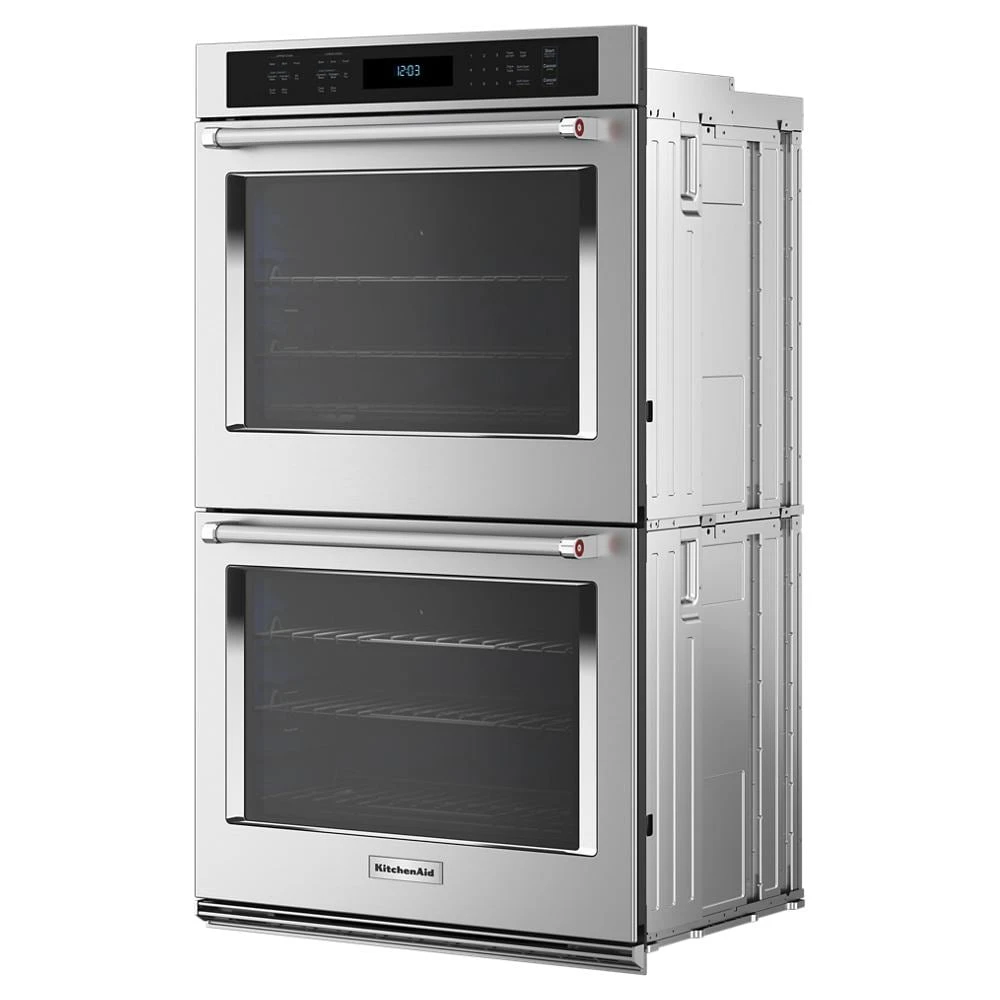

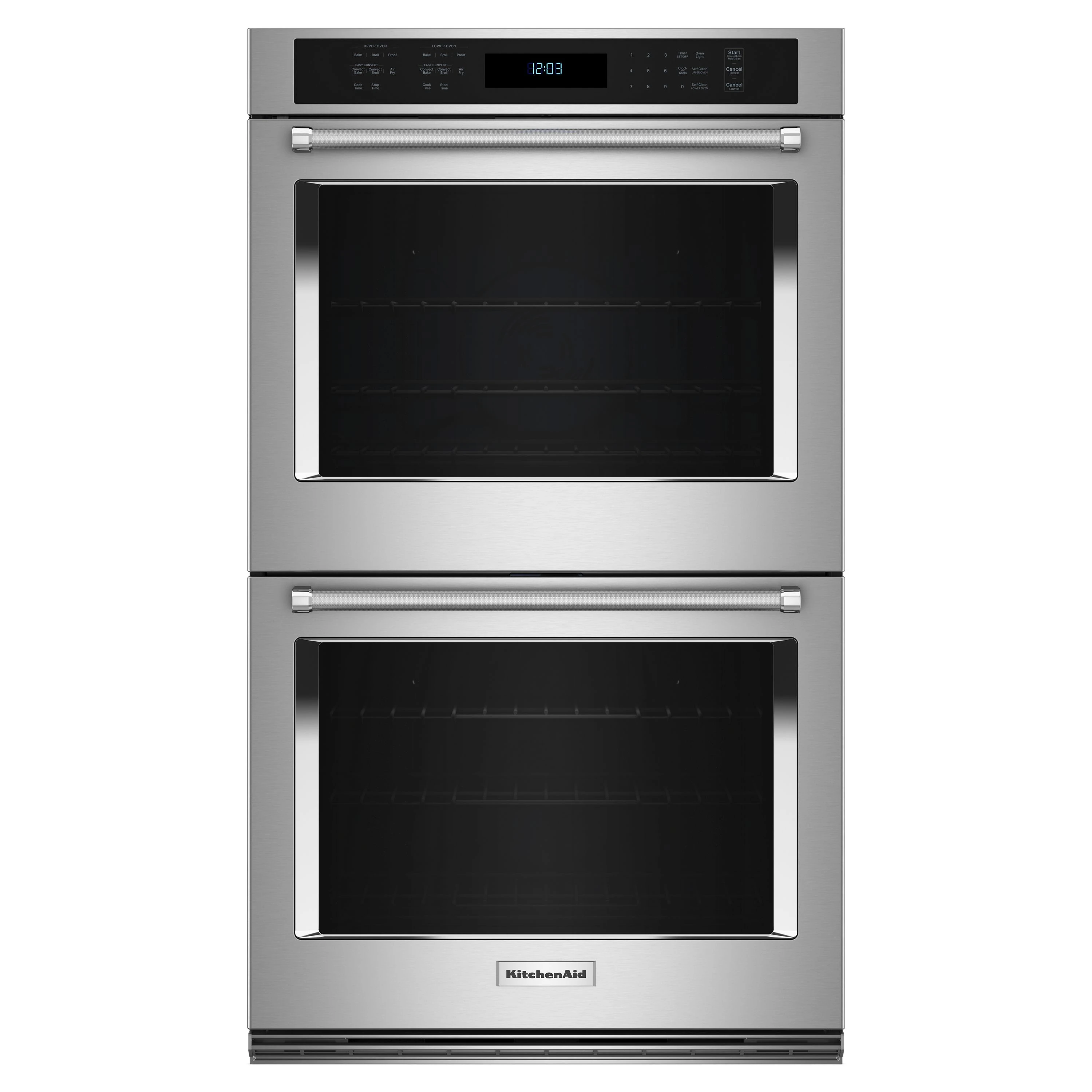

KitchenAid® 30" Double Wall Ovens with Air Fry Mode

Hover to zoom

1 / 9

KitchenAid® 30" Double Wall Ovens with Air Fry Mode

Model: KOED530PPS

Brand	KitchenAid
Model #	KOED530PPS
Width	29.75 in.
Height	50.81 in.
Depth	27-1/8 in, 27-1/8 in, 27-1/8 in

Who it’s for

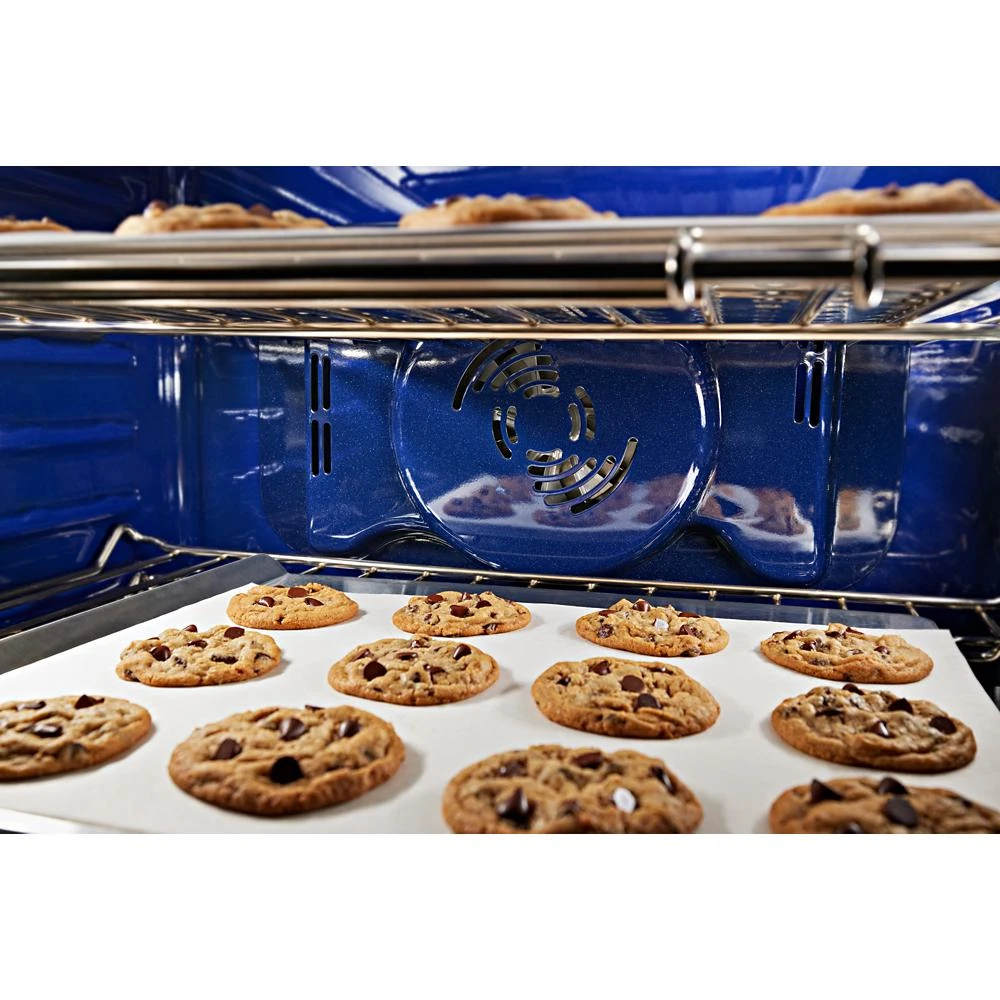

Good for even baking and roasting — Convection is listed on this wall oven — a fan moves hot air around the cavity.
Good for crisping without a countertop fryer — Built-in air fry mode is listed on this model, so no separate countertop fryer is needed.

This model is discontinued

The KitchenAid® 30" Double Wall Ovens with Air Fry Mode is discontinued and cannot be ordered.

The closest current model we carry is the 30-inch Electric Double Wall Oven With No Preheat Air Fry Mode - Printshield™ Finish.

Now available

30-inch Electric Double Wall Oven With No Preheat Air Fry Mode - Printshield™ Finish

$2,798.00

$1,601 less than the model it replaces

Same 29.75" width
Same color: Stainless Steel
Same 27.125" depth
Adds Sabbath Mode

In Stock— 2 units ready to ship

See the newer model →

Closest current model — ships as the current model

Need help finding a replacement? Call (732) 426-0990

Was $4,399 when available

At a glance

KitchenAid KOED530PPS is a double wall oven in Stainless Steel, 29.75 inches wide with 10 cu ft of capacity. It has convection, air fry and a self-clean cycle. It suits even baking and roasting and crisping without a countertop fryer. It is listed as a 30 inch wall oven.

Specifications

Dimensions

Width29.75 in.

Height50.81 in.

Length27.13 in.

Weight296 lbs.

Cutout Depth (in)24

Cutout Height (in)50 1/4

Cutout Width (in)28 1/2

Depth Closed Excluding Handles24.5000

Depth Closed Including Handles27.1250

Depth With Door Open 90 Degree46.7500

Gross Weight296

Net Weight270.0

Cutout Depth24.0000

Cutout Height50.2500

Cutout Width28.5000

Maximum Height51.2500

Minimum Height50.8125

Capacity10 cu. ft.

Common Size30 in

Depth27-1/8 in, 27-1/8 in, 27-1/8 in

Lower Oven Interior Depth19 in, 19 in

Lower Oven Interior Height18 in, 18 in

Lower Oven Interior Width25 in, 25 in

Upper Oven Interior Depth19 in, 19 in

Upper Oven Interior Height18 in, 18 in

Upper Oven Interior Width25 in, 25 in

Controls

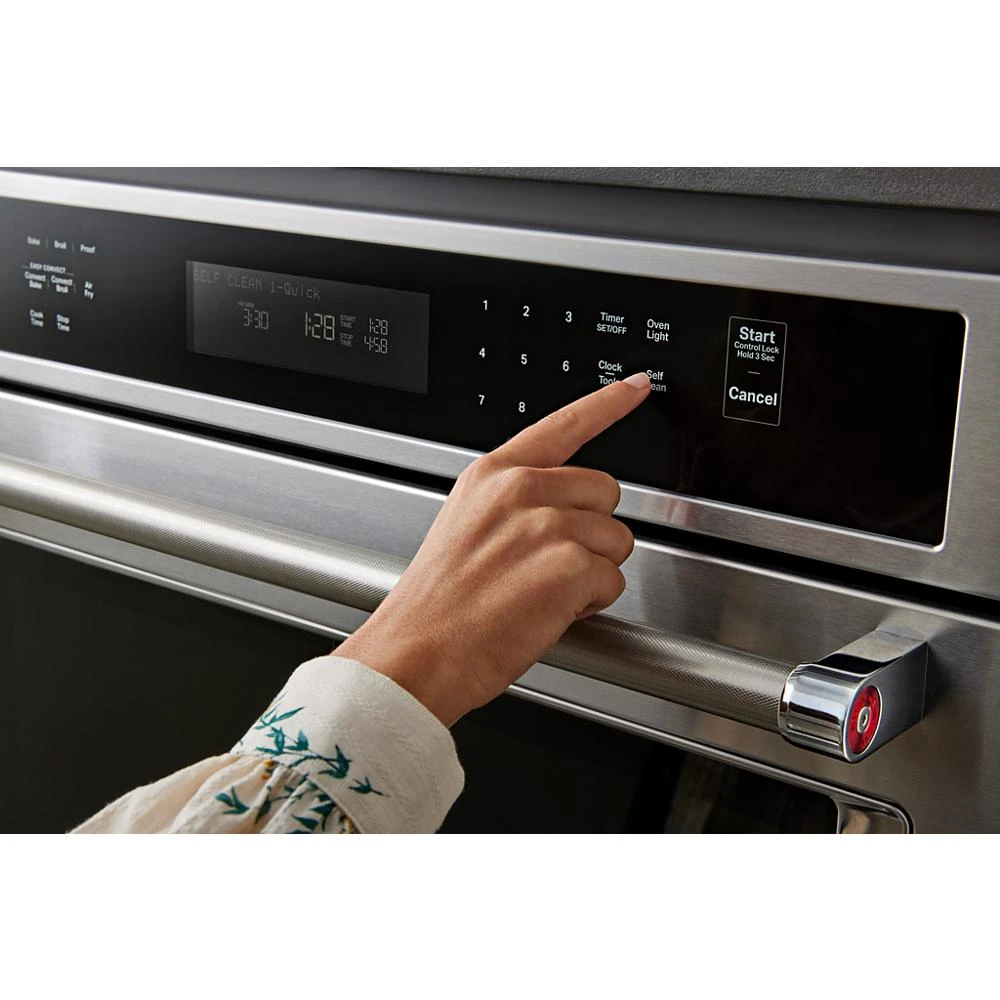

Control TypeElectronic Touch

Display ColorWhite

Electronic Display TypeDigital

Language ConversionEnglish/French/Spanish

Light ControlOven Light Touch Pad

Details

Oven Automatic Shut-offYes

Delay CleanNo

Flush Installation ApprovedYes

Fuel TypeElectric

Oven TypeDouble

Power On Indicator LightYes

Certifications

ADA CompliantNo

Electrical

Amps40

Hz60

Power Cord IncludedNo

Volts240

Oven Cavity Details

Bake Element Power2,800 W Both

Broiler Element Power4,000 W Both

Broiler LocationTop of Oven

Convection Element TypeTrue Convection

Convection FunctionsBake, Broil, Convection Conversion

Door Broil PositionClosed

Door LockYes

Door RemovableYes

Hidden Bake ElementYes

Installable Under CooktopNo

Interior CoatingPorcelain

Light TypeHalogen

Lower Oven Number Of Oven Lights2

Number Of Bake Elements2

Number Of Broil Elements1

Number Of Lower Oven Racks3

Number Of Lower Rack Guides6

Number Of Upper Oven Racks3

Number Of Upper Rack Guides6

Oven Cleaning TypeSelf-Cleaning

Oven Cooking SystemConvection Both

Self-cleaning Oven RacksNo

Upper Oven Number Of Oven Lights2

Convection Element Power3,200 Both w, 3,200 Both w

Smart Compatibility

ConnectivityNo

Works WithNo

Exterior Details

Door LockYes

Door TypeMetal & Glass

Oven Window SizeExtra Large

Product Features

Air Fry Mode

Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.

Product Documents

Air Fry Quick Reference Guide

Quick Start Guide168.70 KB

Control Guide

Reference Guide2.52 MB

Dimension Guide

Spec Sheet2.81 MB

Owner's Manual

User Manual6.50 MB

Warranty

Warranty144.08 KB

Quick Start Guide

Quick Start Guide937.64 KB

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the KitchenAid KOED530PPS good for even baking and roasting?: Yes — Convection is listed on this wall oven — a fan moves hot air around the cavity.
Is the KitchenAid KOED530PPS good for crisping without a countertop fryer?: Yes — Built-in air fry mode is listed on this model, so no separate countertop fryer is needed.
